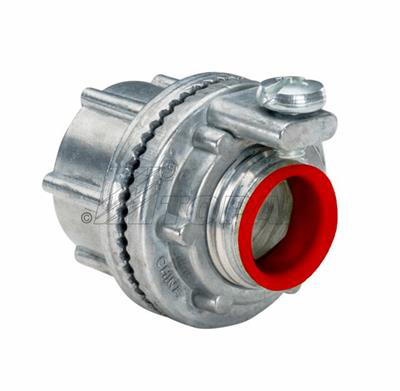

1-1/2" Rigid Watertight Hubs With Bonding Screw – Watertight Conduit Fittings

These 1-1/2" rigid watertight hubs are designed to securely connect rigid or IMC conduit to standard knockouts in electrical boxes or enclosures. Suitable for both indoor and outdoor use, they provide a watertight seal to prevent moisture, dust, and other contaminants from entering the conduit system. Ideal for electrical distributors and switchgear suppliers, these hubs ensure reliable grounding and protection in demanding environments.

Specifications

• Material: Die Cast Zinc
• Connection: Threaded
• Insulation: Insulated Throat
• NEMA Rating: 2, 3R, 4, 4X, 5, 12, 13
• Product Weight: 0.7700 lbs
• Manufacturer Part #: 205B
• Size: 1-1/2"

Features

• Watertight, rain, oil, and dust tight construction
• Corrosion-resistant zinc die cast body
• Flame-retardant insulated throat for added safety and reduced rework
• Oversized locknut protects against vibration damage and promotes positive grounding
• UL Listed for multiple NEMA environments

Downloads & Links

• Spec Sheet
