1-1/2" Rigid Cable Support Body Malleable Iron - Hot Dip Galvanized
SKU: #184182
Part: #CSB5
UPC: 751338018655
1-1/2" Rigid Cable Support Body Malleable Iron - Hot Dip Galvanized
SKU: #184182
Part: #CSB5
UPC: 751338018655
Total Price: $73.72 per each Sold in increments of 1 each
Next day delivery
Description

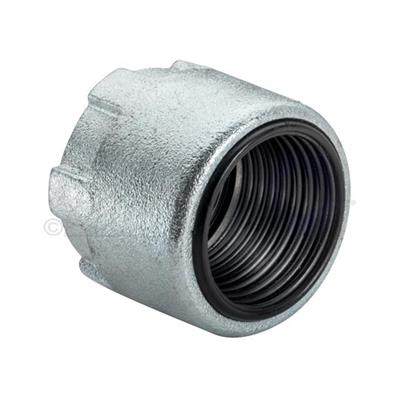

1-1/2" Rigid Cable Support Body Malleable Iron - Hot Dip Galvanized
This rigid cable support body is designed to support non-armored electrical cables in vertical conduit risers. Manufactured from malleable iron with a hot dip galvanized finish, it provides durability and corrosion resistance suitable for harsh weather conditions. It features a tapered, knurled inside surface to securely grip cables and is threaded for rigid conduit and IMC applications. Ideal for use in electrical distribution and lighting solutions, it supports two or more wires with all types of insulation rated at 600V.
Specifications
- Material: Malleable Iron
- Finish: Hot Dip Galvanized
- Connection: Threaded
- Enclosure: NEMA FB1
- Application: Used to support non-armored electrical cables in vertical conduit risers
- Product Weight: 1.0736 lbs
- Manufacturer Part #: CSB5
- UPC: 751338018655
Features
- Threaded for rigid conduit and IMC
- Tapered inside surface is knurled to grip cable
- Supports two or more wires
- Compatible with cable support wood chocks (sold separately)
- Suitable for use with threadless conduit or EMT when used with male end threadless connector
- Supports all types of insulation at 600V
