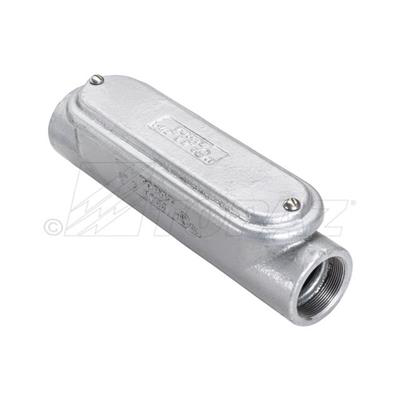

1-1/2" Mogul Conduit Body C Type with Cover and Gasket
SKU: #190752
Part: #MC5CGHDG
UPC: 751338009585
1-1/2" Mogul Conduit Body C Type with Cover and Gasket
SKU: #190752
Part: #MC5CGHDG
UPC: 751338009585
Next day delivery
Description
1-1/2" Mogul Conduit Body C Type with Cover and Gasket – Electrical Conduit Solutions
The 1-1/2" Mogul Conduit Body C Type with Cover and Gasket by Southwire is designed for durable protection of electrical installations in demanding industrial environments. Constructed from high-quality malleable iron and finished with a hot dip galvanizing process, it is suitable for use with rigid and IMC conduit systems. This conduit body features built-in cable pulling rollers and smooth, rounded integral bushings to safeguard conductor insulation, making it an essential component for electrical distributors and switchgear suppliers managing complex wiring systems.
Specifications
- Size: 1-1/2"
- Material: Malleable iron body
- Finish: Hot dip galvanized
- Weight: 9.35 lbs
- Threaded hubs: NPT tapered for rigid and IMC conduit
- Internal Volume: 57 in³
- UPC: 751338009585
- Manufacturer Part #: MC5CGHDG
Features
- Built-in cable pulling rollers for easier conductor installation
- Threaded NPT tapered hubs compatible with rigid and IMC conduit
- Smooth, rounded integral bushings protect conductor insulation
- Weatherproof installation ensured by cover and watertight gasket
- Stainless steel cover screws for corrosion resistance
- UL listed for wet locations
