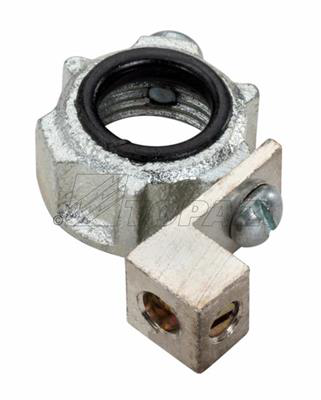

1-1/2" Insulated Malleable Iron Metallic Grounding Bushings With Aluminum Lug - Electrical Grounding Solutions

This 1-1/2" insulated metallic grounding bushing is designed for use with aluminum lugs to terminate conduit service, suitable for electrical distributors and switchgear suppliers requiring reliable grounding components. It is recommended for applications involving copper or aluminum bare ground connectors. The product incorporates a protective thermoplastic throat liner rated to 105°C, which prevents damage to wire insulation, ensuring safety and durability in lighting solutions and wire and cable installations.

Specifications

• Material: Malleable Iron
• Connection: Female Threaded
• Product Weight: 0.2900 lb
• Size: 1-1/2"
• Grounding Lug Wire Size: Minimum 14 AWG, Maximum 2 AWG
• UL Listed: Yes

Features

• Protective thermoplastic liner rated flame retardant to 105°C
• UL listed for use with copper or aluminum grounding conductors
• Indoor or outdoor use with aluminum lug
• Use with locknut to terminate service conduit to a cabinet
• Lug provided for bonding jumper to a neutral bus bar
• Round surface of bushing prevents damage to wire insulation
• Durable malleable iron body construction
