1 1/2 INCH EXP/DEFL COUPLING - Expansion/Deflection Coupling

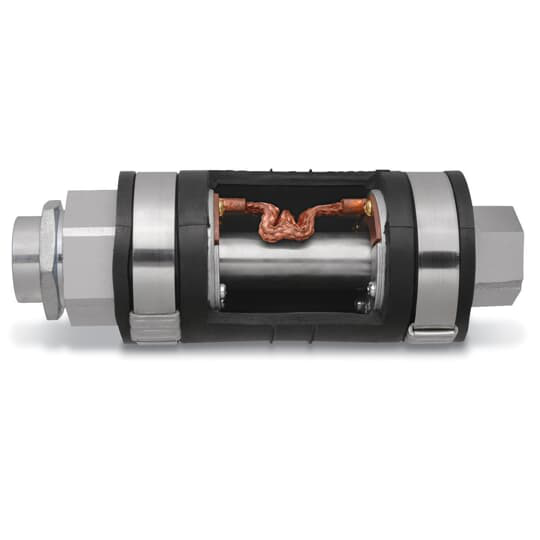

The 1 1/2 Inch XD Expansion/Deflection Coupling by Thomas & Betts is designed to join two conduit runs, allowing for movement in any direction while maintaining a flexible, watertight connection. It supports axial or parallel movement up to 3/4 inch and angular deflection up to 30 degrees, making it suitable for applications requiring conduit flexibility such as bridges, tunnels, inter-building walkways, docks, piers, and wastewater and water treatment facilities. This product is ideal for electrical distributors and switchgear suppliers requiring reliable conduit connections in harsh environments.

Specifications

• Material: Ductile Cast Iron
• Application: Bridges, Tunnels, Inter-Building Walkways, Docks and Piers, Wastewater and Water Treatment Facilities
• Product Weight: 10.6 lbs
• Manufacturer Part #: XD5-TB
• UPC: 786209894151
• Hub Size: 1 1/2 inch
• Dimensions (inches): A - 9 1/4, B - 8 7/8, C - 6 3/4, D - 4 5/32
• UL Listed to UL 514B and CSA Certified to C22.2 No. 18.3
• Watertight Rating: NEMA 4
• NEC Compliant: Article 250.98 and 300.4(A)

Features

• Flexible, watertight neoprene outer jacket for superior corrosion resistance
• Zinc-plated and acrylic-painted hubs with stainless steel tamperproof straps
• Durable stainless steel inner sleeve maintains smooth inner diameter to ease wire pulling and protect insulation
• Internal flexible copper braid grounding bonding jumper and copper ground mounting plates enclosed to prevent theft
• Includes Erickson¬Æ type conduit union for faster installation and reduced labor costs
• NPT threaded hubs fit standard threaded rigid metal conduit; compatible with rigid PVC conduit using standard adapters (not supplied)
• Suitable for indoor, outdoor, direct burial, or embedding in concrete
