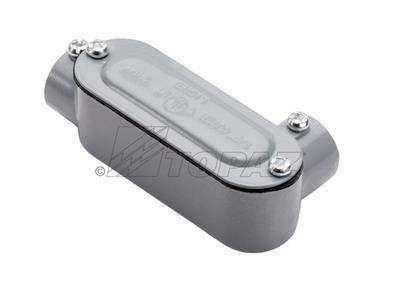

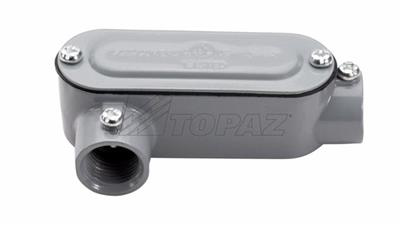

1-1/2" EMT & Rigid Combo LR Type Aluminum Conduit Bodies with Covers & Gaskets

Topaz’s 1-1/2" EMT and Rigid combination LR type conduit body provides access to conductors for pulling, splicing, and maintenance. Designed for use with threaded rigid metal conduit, it is suitable for concrete and wet locations, making it a reliable component for electrical distributors and switchgear suppliers. Its corrosion-resistant die cast aluminum construction ensures durability and excellent ground continuity in demanding environments.

Specifications

• Application: To provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete, wet locations
• Material: Die cast aluminum
• Form: LR
• Hub Size: 1-1/2"
• Dimensions: Length 8.22 in, Width 3.48 in, Height 2.67 in
• Mounting: Wall mount
• Product Weight: 1.2 lbs
• Manufacturer: Southwire
• Manufacturer Part #: LR5SSCG
• UPC: 751338837843

Features

• Combination LR type with cover and gasket for protection and easy access
• Corrosion resistant aluminum construction with powder coat finish
• Domed cover allows additional wiring space
• Smooth, rounded integral bushings protect conductor insulation
• NEMA FB 1 rated for wet locations, suitable for use in concrete
• UL listed for safety and reliability

Downloads & Links

• Spec Sheet
