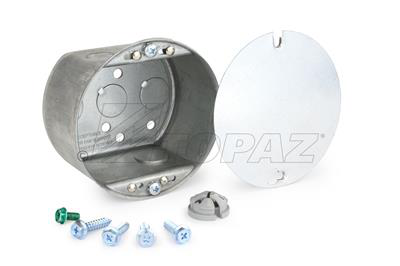

1-1/2" Deep Fan Support Boxes
SKU: #184088
Part: #CMB150
UPC: 751338871779
1-1/2" Deep Fan Support Boxes
SKU: #184088
Part: #CMB150
UPC: 751338871779
Next day delivery
Description
1-1/2" Deep Fan Support Boxes – Fan Support Solutions
The 1-1/2" Deep Fan Support Boxes by Southwire are designed for secure mounting of ceiling fans and light fixtures in new construction and remodel applications. Manufactured from galvanized steel, these boxes feature a round, energy-saving design with side knockouts and a protective metal cover to prevent debris entry and wire damage. Suitable for electrical distributors and switchgear suppliers, these boxes support fixtures up to 150 lbs. and ceiling fans up to 70 lbs., meeting UL listing requirements.
Specifications
- Material: Galvanized Steel
- Dimensions: 4" Diameter, 1-1/2" Depth
- Cubic Capacity: 15.3 CU-IN
- Number of Outlets: 2 Side, 3 Bottom
- Cable Entry: Knock Out
- Construction: Deep
- Product Weight: 0.6625 lbs
- Application: New Construction and Remodel
- Manufacturer Part #: CMB150
Features
- Protective metal cover eliminates debris entry and wire damage
- Easy-to-use slide select feature for #8 and #10 screw holes
- Energy-saving round design
- Side knockouts for flexible cable entry
- Supports maximum light fixture weight of 150 lbs.
- Supports maximum ceiling fan weight of 70 lbs.
- UL Listed and RoHS Compliant
