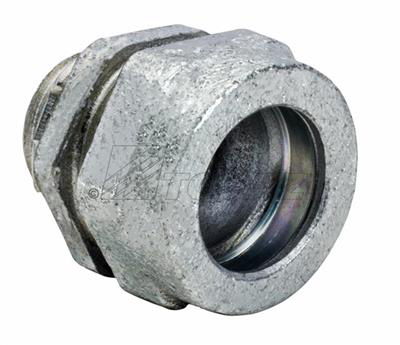

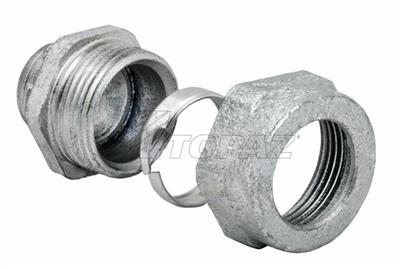

1-1/2" Compression Type Malleable Iron Rigid Connectors

Southwire’s 1-1/2" Compression Type Malleable Iron Rigid Connectors provide secure, threadless connections for rigid or IMC conduit to electrical junction boxes or metal enclosures. Designed for dry location use, these connectors ensure mechanical protection and a concrete-tight seal, suitable for various electrical distribution and lighting solutions applications.

Specifications

• Material: Malleable Iron
• Connection: Male Threaded x Compression
• Size: 1-1/2"
• Product Weight: 0.75 lbs
• Manufacturer Part #: 265M
• UPC: 751338855380
• Standard Finish: Zinc Plated
• UL Listed: UL 514B

Features

• Compression type connector for threadless assembly
• Concrete tight design for superior protection against elements
• Suitable for joining unthreaded rigid or IMC conduit to steel outlet boxes or metal enclosures
• Trade sizes from 1/2" to 6" available for multiple applications

Downloads & Links

• Spec Sheet
