#1/0 Parallel Tap Conn.
SKU: #304077
Part: #GP-0
UPC: 662381002518
#1/0 Parallel Tap Conn.
SKU: #304077
Part: #GP-0
UPC: 662381002518
Description
#1/0 Parallel Tap Conn. Electrical Connector

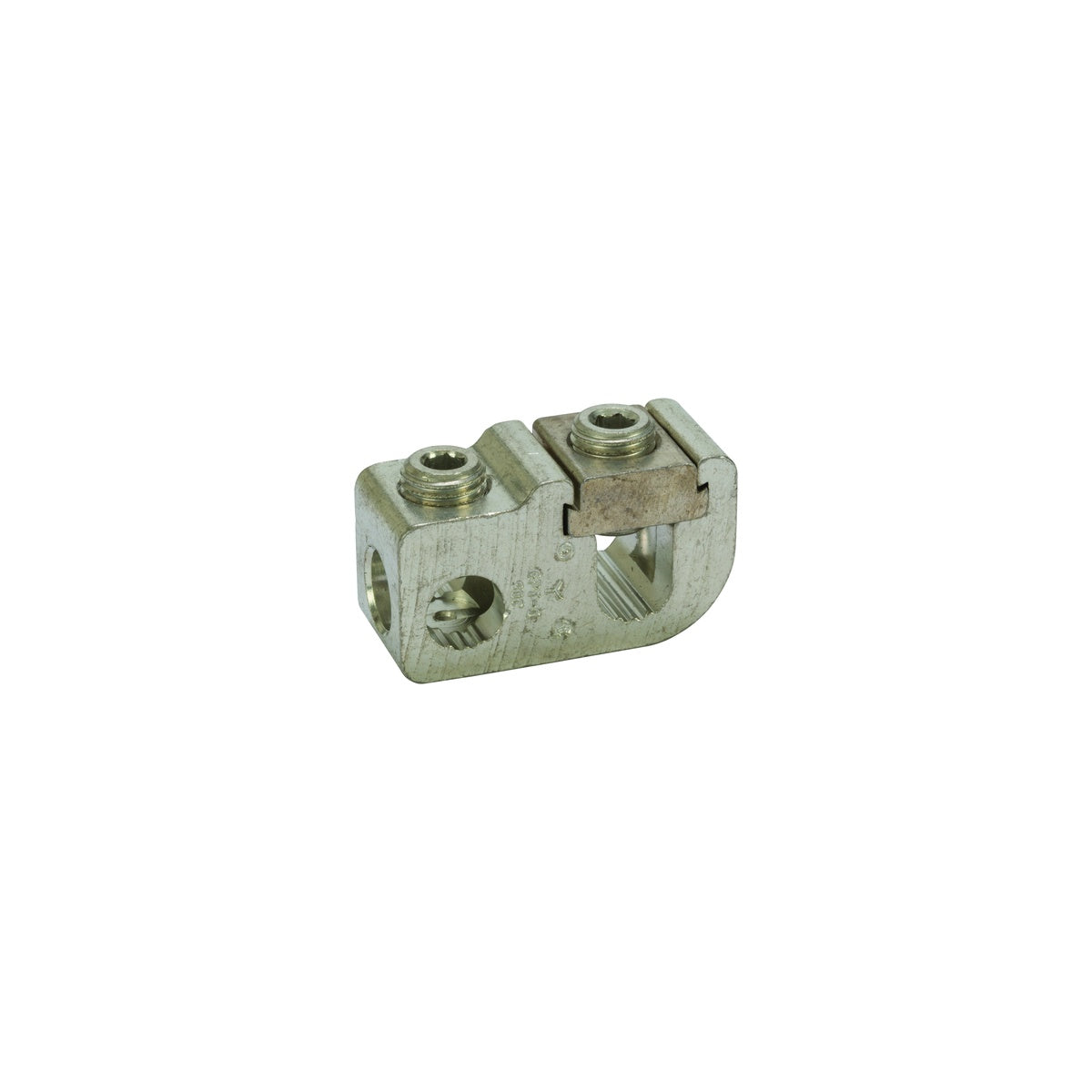

The #1/0 Parallel Tap Connector by NSI Industries is designed for wire termination applications, enabling efficient tapping off a main conductor without cutting, thanks to its lay-in feature. This aluminum mechanical connector supports parallel or "T" tap configurations, making it suitable for electrical distributors and switchgear suppliers handling wire and cable installations. Rated for 600V and 90°C, it ensures reliable performance in lighting solutions and electrical distribution systems.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Color: Aluminum
- Finish: Aluminum
- Wire Type: AL/CU
- Number of Conductors: 2
- Number of Poles: 1
- Voltage Rating: 600V
- Temperature Rating: 90 degrees Celsius
- Dimensions (L x W x H): 1.75 in x 0.75 in x 1 in
- Product Weight: 1.08 lbs
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer Part #: GP-0
Features
- Lay-in design allows tapping without cutting the main conductor
- Perpendicular tap enables parallel or "T" tap configuration
- Electro-tin plated for low contact resistance
- UL Listed/cULus Listed for Wire Connector E155274, UL486A/B Listed AL9CU, CSA 701642 certified
