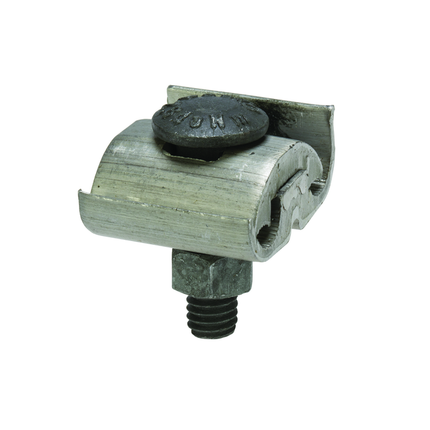

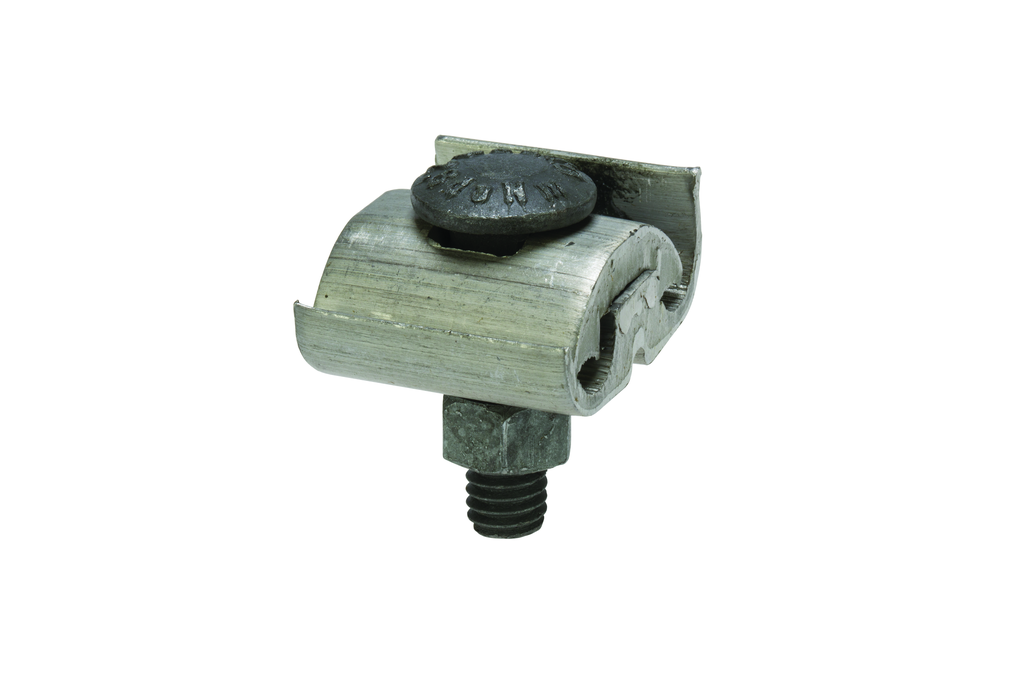

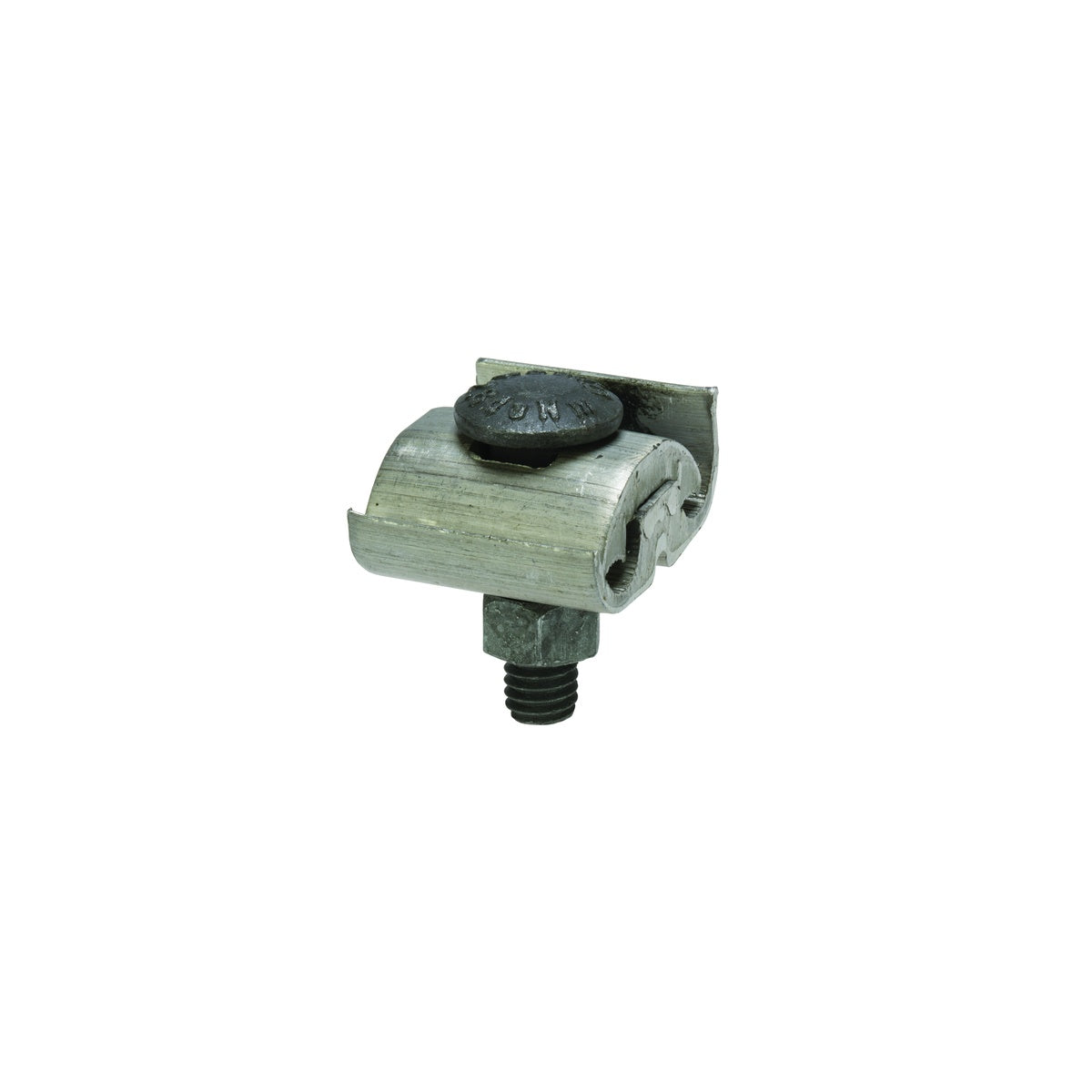

1/0-6 Al Parallel Gr Clmp Aluminum Parallel Groove Clamp

This aluminum dual rated parallel groove clamp is designed for wire termination applications, suitable for use with ACSR and aluminum/copper wire types. It is manufactured by NSI Industries and intended for heavy duty service entrance or distribution armor rod clamp applications. The clamp provides secure electrical connections with serrated grooves that increase contact and is pre-filled with oxide inhibitor to ensure long-term reliability. It is rated for 600V and 90 degrees Celsius operating temperature.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: PAA4
• Material: Aluminum
• Finish: Aluminum
• Color: Aluminum
• Application: Wire Termination
• Wire Type: ACSR - AL/CU
• Number of Conductors: 2
• Number of Poles: 1
• Voltage Rating: 600V max
• Max. Temperature: 90 degrees Celsius
• Dimensions (L x W x H): 2.219 in x 1.5 in x 1.187 in
• Product Weight: 4.75 lbs
• Country of Origin: India
• Order Minimum: 1

Features

• High strength aluminum extruded alloy construction with steel or anodized aluminum flat washers
• Serrated grooves provide increased electrical contact
• Supplied pre-filled with oxide inhibitor for corrosion resistance
• Suitable for heavy duty service entrance or distribution armor rod clamp use
