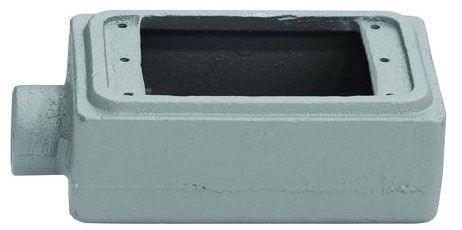

0ZGFD150, Cast Device Box for Rigid Conduit and IMC

The 0ZGFD150 Cast Device Box by O-Z Gedney is designed for use with rigid conduit and intermediate metal conduit (IMC) systems. This product serves as a durable enclosure for electrical wiring devices such as switches and receptacles, providing a secure, corrosion-resistant housing suitable for both indoor and outdoor applications. It is ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring reliable device boxes for conduit installations.

Specifications

• Material: Gray Iron
• Application: For Rigid Conduit And IMC
• Dimensions: Height 5.88 Inch, Width 2.81 Inch
• Cubic Capacity: 28 CU-IN
• Cable Entry: (1) 1/2 IN Hub
• Mounting Type: Flush
• Number of Outlet: 1
• Product Weight: 2.49 lbs
• Knockouts: False
• Manufacturer: O-Z Gedney
• Manufacturer Part #: FD150

Features

• Cast device box constructed of durable gray iron for high tensile strength and impact resistance.
• Flush mounting type for seamless installation in conduit systems.
• Single 1/2 inch hub for cable entry, designed specifically for rigid conduit and IMC.
• Corrosion-resistant material suited for harsh environments.
• No knockouts, ensuring a secure and sealed enclosure.
• Compact size with 28 cubic inches capacity to accommodate wiring devices.

Downloads & Links

• Other 1
• Catalog
