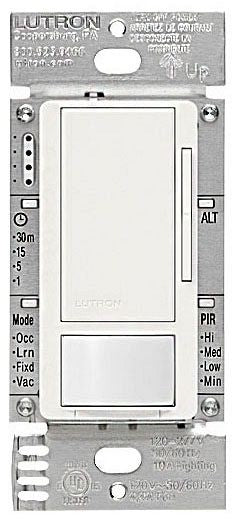

0-10V DIMMER SENSOR VAC GRAY - Lighting Control Dimmer Sensor

The Lutron Maestro 0-10V Motion Sensor/Dimmer Switch provides advanced lighting control by combining dimming functionality with passive infrared (PIR) motion sensing technology. Designed for indoor use, it automatically adjusts lighting levels based on occupancy, enhancing energy efficiency and user convenience. Suitable for single-pole, 3-way, and multi-location installations, this sensor is compatible with 0-10V LED and fluorescent fixtures and integrates seamlessly with Lutron lighting solutions and wire and cable infrastructure.

Specifications

• Name: 0-10V DIMMER SENSOR VAC GRAY
• Manufacturer: Lutron
• Manufacturer Part #: MS-Z101-V-GR
• Application: Lighting Control
• Load Rating: 8 A / 0-10VDC
• Operating Voltage: 120‚Äì277 V, 50/60 Hz (from specification guide)
• Control Types: Single-pole, 3-way, multi-location (up to 9 companion switches)
• Sensor Type: Passive Infrared (PIR) with Lutron exclusive Cross Correlation Technology (XCT)
• Sensor Coverage: 180¬∞ field of view; Major motion coverage 30 ft √ó 30 ft (900 sq ft), Minor motion 20 ft √ó 20 ft (400 sq ft)
• Material: Plastic body and enclosure
• Mounting Type: Wallbox
• Color: Gray
• Product Weight: 5.55 lbs
• Environmental Conditions: Indoor use only; 0 to 90% humidity, non-condensing
• Operating Temperature: 32 to 104 ¬∞F
• Compatible with drivers/ballasts compliant with IEC 60929 Annex E.2
• Control Current: 50 mA max sink current; controls up to 25 ballasts or drivers

Features

• Automatically turns lights on upon occupancy and off after vacancy with adjustable timeout settings (1, 5, 15, or 30 minutes)
• Vacancy-only mode available to meet California Title 24 requirements
• Adjustable low-end trim for LED dimmest stable light level
• High/medium/low/minimum PIR sensitivity settings to customize motion detection
• Raise/lower buttons allow manual adjustment of light levels and preset settings
• Passive infrared sensor with tamper-resistant lens for reliable motion detection
• Cross Correlation Technology (XCT) enables detection of fine motions such as typing or reading to prevent premature light shutoff
• Compatible with Maestro companion switches for multi-location control (up to 10 locations)
• No power pack required for 0-10V control
• Digital fade dimming for smooth light transitions
• Plastic construction ensures durability and ease of installation
• Available in over 10 colors for aesthetic matching with Lutron Claro wall plates (sold separately)
