Plastic In-Use Weatherproof Cover, Single-Gang, Vrt/Hrz, 4.75" Clear - Weatherproof Electrical Cover

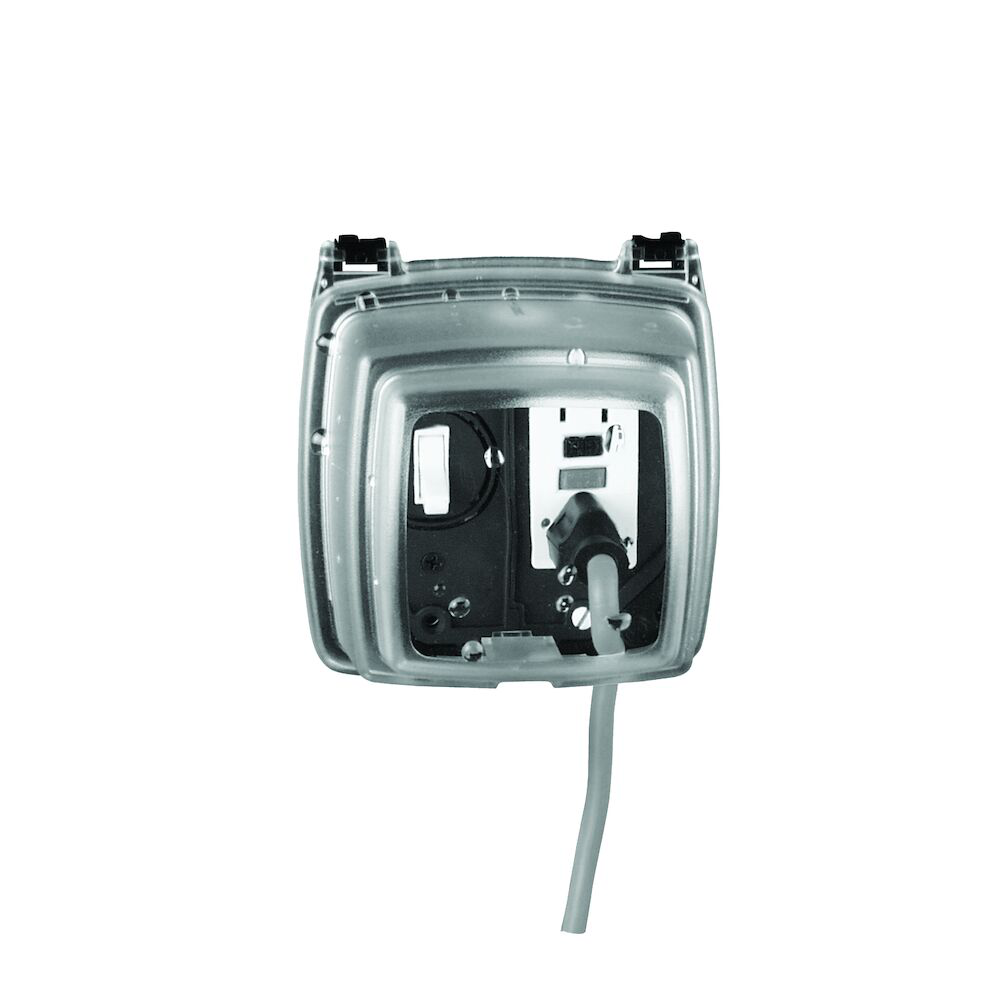

The Intermatic Plastic In-Use Weatherproof Cover WP1150C provides durable protection for electrical receptacles in outdoor and damp locations. Designed for easy installation, it includes a base, cover assembly, adhered gasket, mounting screws, and inserts to accommodate various applications. This weatherproof cover is suitable for electrical distributors and lighting solutions requiring reliable wire and cable protection in exposed environments.

Specifications

• Model Number: WP1150C
• Description: Plastic In-Use Weatherproof Cover, Single-Gang, Horizontal, 4.75" Clear
• Material: UV Stabilized Polycarbonate
• Color: Clear
• Dimensions (H x W x D): 5.375 in x 3.5 in x 4.75 in (121 mm depth)
• Accepted Cord Size: (2) #14 AWG or (1) #12 AWG
• Number of Included Inserts: 3 (WP17 inserts)
• Hinge Direction: Horizontal
• Box Type: Single Gang
• Country of Origin: Mexico
• Product Weight: 0.444 lbs
• UL Certification: cULus Listed for Type 3R outdoor enclosures
• Warranty: 1-year limited

Features

• Complies with 2020 NEC Article 314.15 for damp and wet locations
• Heavy-duty UV stabilized polycarbonate construction for durability and weather resistance
• 1/8" (3 mm) thick pre-adhered neoprene gasket with slits for mounting screws ensures a weatherproof seal
• Includes three inserts allowing multiple installation configurations (up to 8)
• Meets cold impact testing requirements down to -60¬∞ F (-51¬∞ C)
• Easy installation with adhered gasket, mounting screws, base, cover assembly, and inserts included

Downloads & Links

• Instruction Sheets
• Spec Sheet
