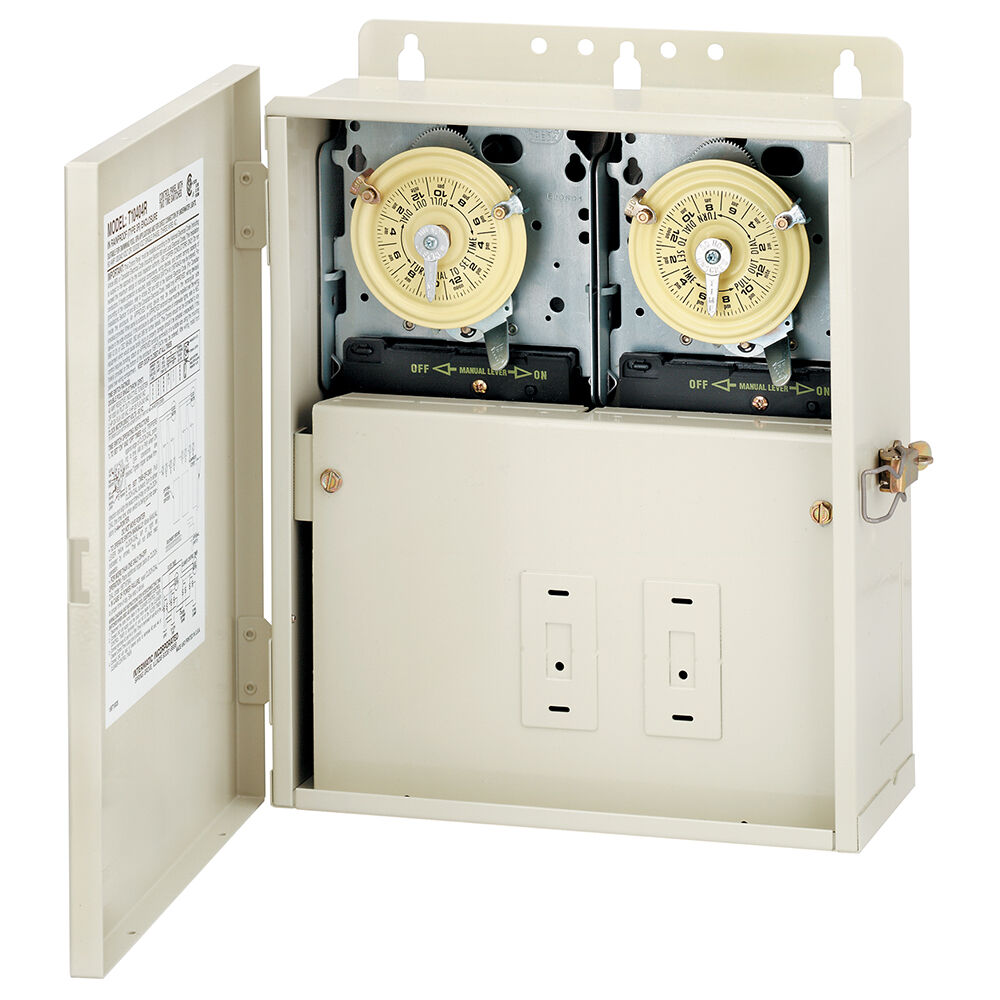

Control Panel with Two T104M Mechanisms - Time Switch Control Panel

This Control Panel with Two T104M Mechanisms is designed for use as a power center or as a complete control system by adding mechanisms or wiring devices. It is suitable for electrical distributors and lighting solutions requiring reliable time switch control, particularly in wire and cable installations or switchgear applications. The panel supports indoor and outdoor use, including swimming pool and spa applications, and direct connection of underwater lights.

Specifications

• Manufacturer: Intermatic
• Manufacturer Part #: T10404R
• Material: Metal
• Color: Beige
• Height: 12.875 in
• Depth: 120.7 millimeters
• Number of Circuits: 2
• Product Weight: 11.3760 lbs
• Country of Origin: Mexico
• Max Operating Temperature: 130 degrees Fahrenheit
• Min Operating Temperature: -40 degrees Celsius

Features

• Double Pole Single Throw (DPST) time switches rated 30 AMP for resistive, inductive, tungsten loads, or 1000 VA pilot duty at 120/208/240 VAC
• Clock motor operates at 208/277 volts, 60 Hz
• Rainproof (Type 3R) enclosure suitable for indoor and outdoor use
• Compatible with Intermatic T100M or ET100CM series time switches and other approved mechanisms
• Designed for use with copper conductors only, complying with National Electrical Code (NEC) and Canadian Electrical Code (CEC) requirements
• Supports installation of approved wiring devices inside the enclosure
• Includes manual lever for manual switch operation without affecting programmed settings
• Suitable for swimming pool/spa applications and direct underwater light connections
• Installation requires adherence to NEC Article 680 or CEC Section 68 and local codes, ensuring safety and compliance
