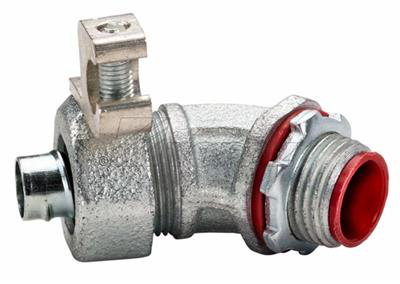

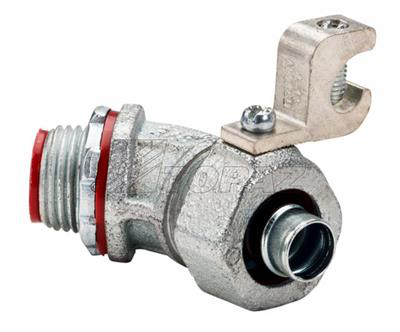

4" 45° Liquidtight Connector with Grounding Lug – Liquidtight Conduit Fitting

This 4-inch 45° liquidtight connector with grounding lug is designed for securely connecting liquidtight conduit and terminating an external bonding conductor that runs parallel to the conduit. It is suitable for use by electrical distributors and switchgear suppliers in applications requiring durable, reliable grounding and conduit connections. The connector complies with NEC code requirements and is UL listed for use in hazardous locations, making it a dependable component in lighting solutions and wire and cable installations.

Specifications

• Manufacturer Part #: 240SGR
• Conduit Size: 4"
• Lug Size: 6/250
• Product Weight: 9.05 lbs
• Material: Malleable iron body, steel locknut, aluminum lug
• Finish: Zinc electroplated
• UL Listings: UL 467, UL 486A
• Applicable Standards: Fed. Spec W-S-610E, NEMA GR 1-2017

Features

• Liquidtight, raintight, and oiltight construction
• Lay-in grounding lug for easy bonding conductor termination
• Insulated throat protects conductors from abrasion damage
• Zinc electroplated finish ensures excellent durability
• Suitable for grounding in hazardous locations under NEC 501-4(b), 502-4(a), (2)503-3(a) Class I Div. 2, Class II Div. 1 and 2, Class III Div. 1 and 2

Downloads & Links

• Spec Sheet
