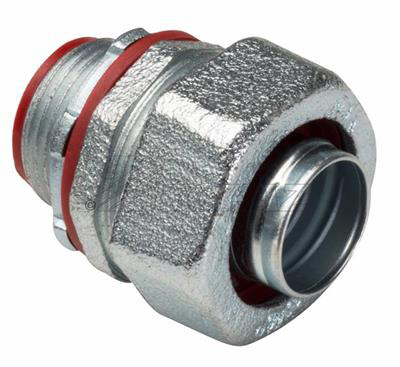

3/4" Straight Liquidtight Connector with Insulated Throat – Liquidtight Connector

This 3/4" Straight Liquidtight Connector with Insulated Throat by Southwire is designed to secure, ground, and seal liquidtight flexible metal conduit to boxes or enclosures. Suitable for use in hazardous and wet locations, it meets the needs of electrical distributors and switchgear suppliers requiring durable and reliable conduit fittings. The connector is ideal for applications involving lighting solutions and wire and cable installations where protection against moisture and abrasion is critical.

Specifications

• Material: Malleable Iron
• Connection: Threaded
• Insulation: Insulated Throat
• Environmental Conditions: Hazardous and Wet Locations
• Dimensions (L x W x H): 1.64 in x 0.63 in x 1.81 in
• Product Weight: 0.2360 lbs
• Manufacturer Part #: 472S
• UPC: 751338144507

Features

• Liquidtight, raintight, and oiltight design
• Tapered threaded male hub NPT for secure connection
• Insulated throat protects conductors from abrasion damage
• Compact slim diameter with small turning radius
• Zinc electro plated finish for enhanced durability

Downloads & Links

• Spec Sheet
