Description
Features
- Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
General
- Color: Yellow
- Disconnect Type: Female - 250 Series
- Terminal Series: RC
- Tab Size: .250 x .032
- Finish: Electro Tin-Plated
- Insulation Type: Fully Insulated Nylon
- Material: Brass
- Wire Range: 12-10

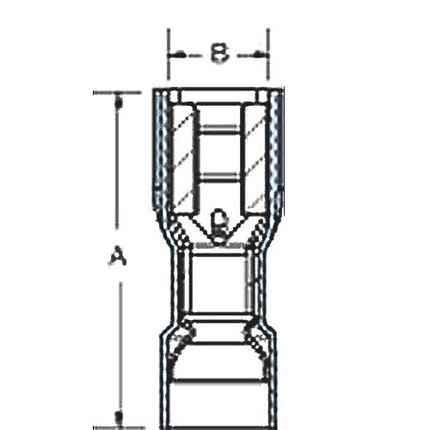

Dimension Information
- A (inches): 1.04
- B (inches): .38
- Maximum Insulation (inches): .225
- Stock Thickness: .04
Specifications
- Temperature Rating: 105°C
- Voltage Rating: 600V
- Flammability Rating: UL 94 V-2
Tooling
- Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
- Recommended Tool: ERG4001
Packaging
- Order Multiple: 50
- T&B Sold in UOM: Each
- T&B Weight Per UOM: 7.5 lbs. per 1000
- Package Length: 12.25
- Package Type: Standard
- Package Height: 8
- Inner Package: 50
- Package Width: 10.25
- Alternate Package Qty: RC2573
- Outer Package: 250
Application Support
OverviewWire Guide Tables
Certifications
- UL
- RoHS Compliance: Yes (exemption 06)
- CSA
