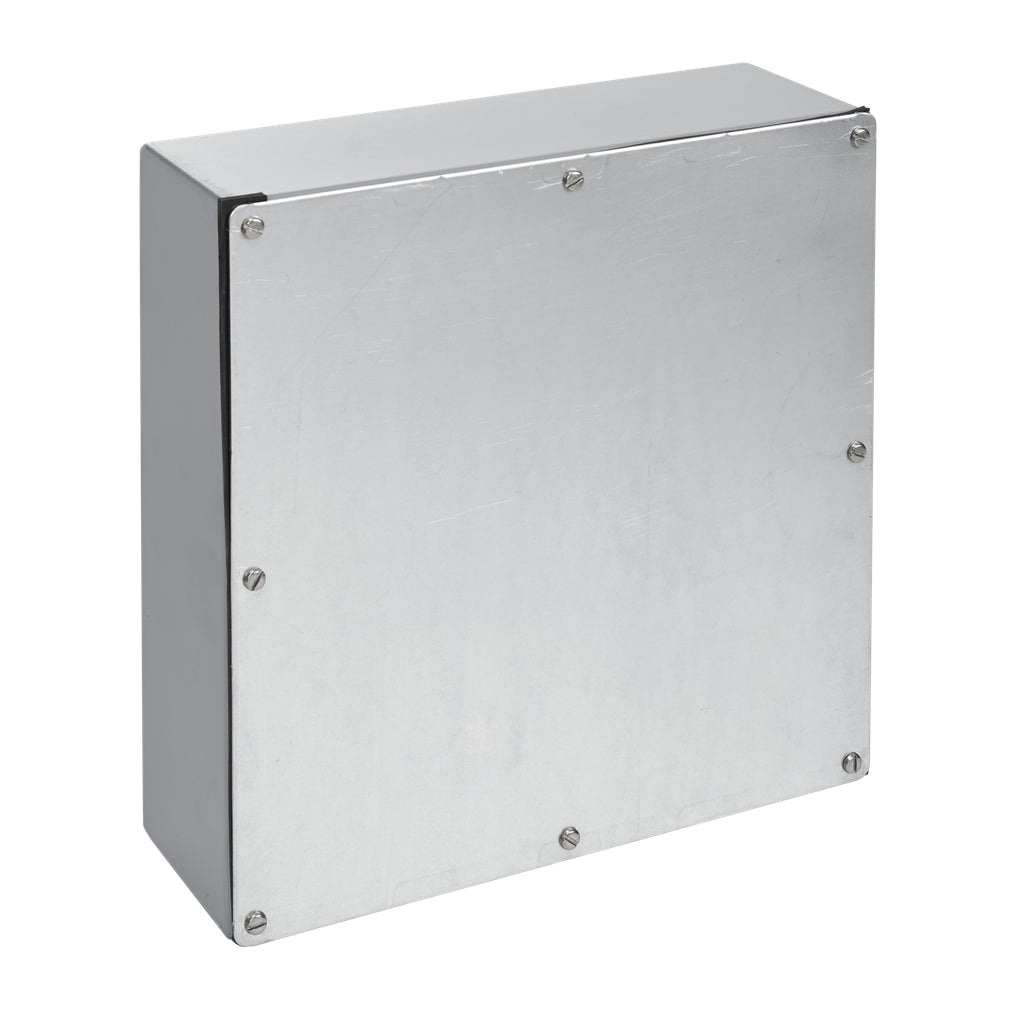

Description
Features
- Captivated stainless steel cover screws thread into sealed wells
- Oil-resistant gasket and adhesive
- Seams continuously welded and ground smooth
- No holes or knockouts
- Grounding stud on inside back of box
Specifications
- Length: 15.60 inch
- Width: 16.60 inch
- Height: 6.10 inch
- Weight: 23.80 pound
- Height (H) (inch): 16
- Height (H) (millimetre): 406
- Width (W) (inch): 16
- Width (W) (millimetre): 406
- Depth (D) (inch): 6
- Depth (D) (millimetre): 152
- Protection Rating: NEMA Type 3
- Material: Mild Steel
- Finish: Galvanized
- Body Thickness (gauge): 14
- Body Thickness (millimetre): 1.9
- Door Thickness (gauge): 10
- Door Thickness (millimetre): 3.4
- NEMA Rating: 3 Weather-resistant
- Cover Screw Quantity: 8
- Modification Services: Yes
- Type Number: Type 4
- IP Rating: IP66
- Weight (pound): 23.8
- Size: 16.00x16.00x6.00 in
Downloads
Spec SheetCertificate
CERT-00111 NAM-US English CERT-00111CERT-00111 NAM-CA English CERT-00111
CERT-00111 EMEA-EUR English CERT-00111
Declaration of Conformity: Galvanized Screw Cover Enclosure NAM-US English CE-UKCA-00032_Galv-SC-4X
Declaration of Conformity: Galvanized Screw Cover Enclosure NAM-CA English CE-UKCA-00032_Galv-SC-4X
Declaration of Conformity: Galvanized Screw Cover Enclosure EMEA-EUR English CE-UKCA-00032_Galv-SC-4X
Data Sheet
Screw-Cover, Gasketed, Type 3 Spec Sheet NAM-CA English Spec-00264Screw-Cover, Gasketed, Type 3 Spec Sheet EMEA-EUR English Spec-00264
Instruction Manual
Screw-Cover, Gasketed, Type 3 Instruction Manual NAM-US English 23346001Screw-Cover, Gasketed, Type 3 Instruction Manual NAM-CA English 23346001
Screw-Cover, Gasketed, Type 3 Instruction Manual EMEA-EUR English 23346001
