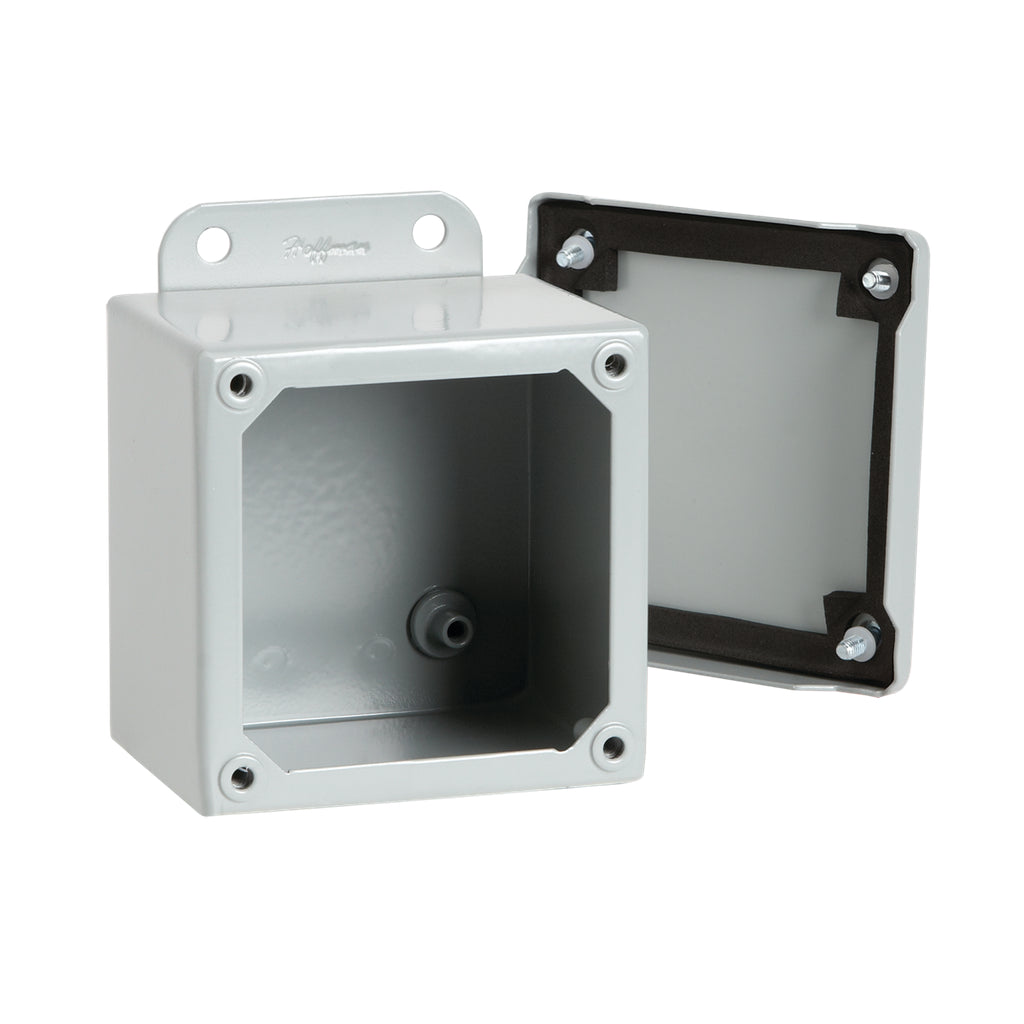

Description
Features
- Seams continuously welded and ground smooth
- Bonding provision on cover
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
- External wall-mounting brackets for easy installation
Specifications
- Length: 7.50 inch
- Width: 6.30 inch
- Height: 4.30 inch
- Weight: 4.00 pound
- Height (H) (inch): 6
- Height (H) (millimetre): 152
- Width (W) (inch): 6
- Width (W) (millimetre): 152
- Depth (D) (inch): 4
- Depth (D) (millimetre): 102
- Protection Rating: NEMA Type 12
- Material: Mild Steel
- NEMA Rating: 12 Indoor, dust-resistant
- Panel: A6P6
- Conductive Panel: A6P6G
- Panel Size (D x E) (inch): 4.88 x 4.88
- Panel Size (D x E) (millimetre): 124 x 124
- Mounting (G x H) (inch): 6.75 x 4.00
- Mounting (G x H) (millimetre): 171 x 102
- Overall Dimensions (L x W) (inch): 7.50 x 6.28
- Overall Dimensions (L x W) (millimetre): 191 x 160
- Modification Services: Yes
- Type Number: Type 13
- IP Rating: IP65
- Color: Gray
- Color Code: ANSI 61
- Finish: Powder Coated
- Thickness (T) (gauge): 16
- Thickness (T) (millimetre): 1.52
- Weight (pound): 4
- Size: 6.00x6.00x4.00 in
