Features

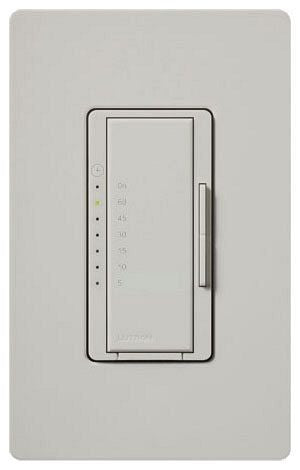

• Includes (1) Maestro Countdown Timer Switch with Neutral; Satin Finish
• Rated to work with up to 150W LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV or 3A general purpose fans
• Neutral required; 120V
• 5W/.05A minimum load, suitable for DC and high efficiency exhaust fans
• Tap once to start timer or double tap for always on; use raise/lower buttons to adjust countdown time anywhere from 5 to 60 minutes (5, 10, 15, 30, 45, and 60 minutes)
• Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications; traditional 3-way switches will not work with this device
• Use up to 9 accessory switches (MA-AS/MSC-AS) with one Lutron Maestro 8A Timer Switch
• Orange LEDs indicate timer duration or remaining time in minutes; Bottom LED blinks rapidly to indicate one minute of time remaining
• Available in 10+ colors
• Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
• Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans
• Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms
• Use with lighting
• Tap on to start timer (5-60 minutes); tap off; tap twice for full on with no timer action
• Touch rocker to adjust countdown time
• One minute warning before lights/fan go off
• Timer advanced programming features available.

Standards and Certifications

• UL
• IEC
• cUL
• ANSI/IEEE

Specifications

• Amperage Rating: 5 A
• Application: Lighting Control
• Connection: Screw terminal
• Contact Configuration: N-O
• Contact Rating: 5 A
• Enclosure: Plastic
• Insulation: Plastic
• Mounting: Wallbox
• Number Of Poles: 1
• Size: 4.69 x 2.94 in
• Timing Range: 5 - 60 min
• Type: Countdown timer control switch, multi-location/single-pole
• Voltage Rating: 120 V
• Wattage: 600 W
