Features

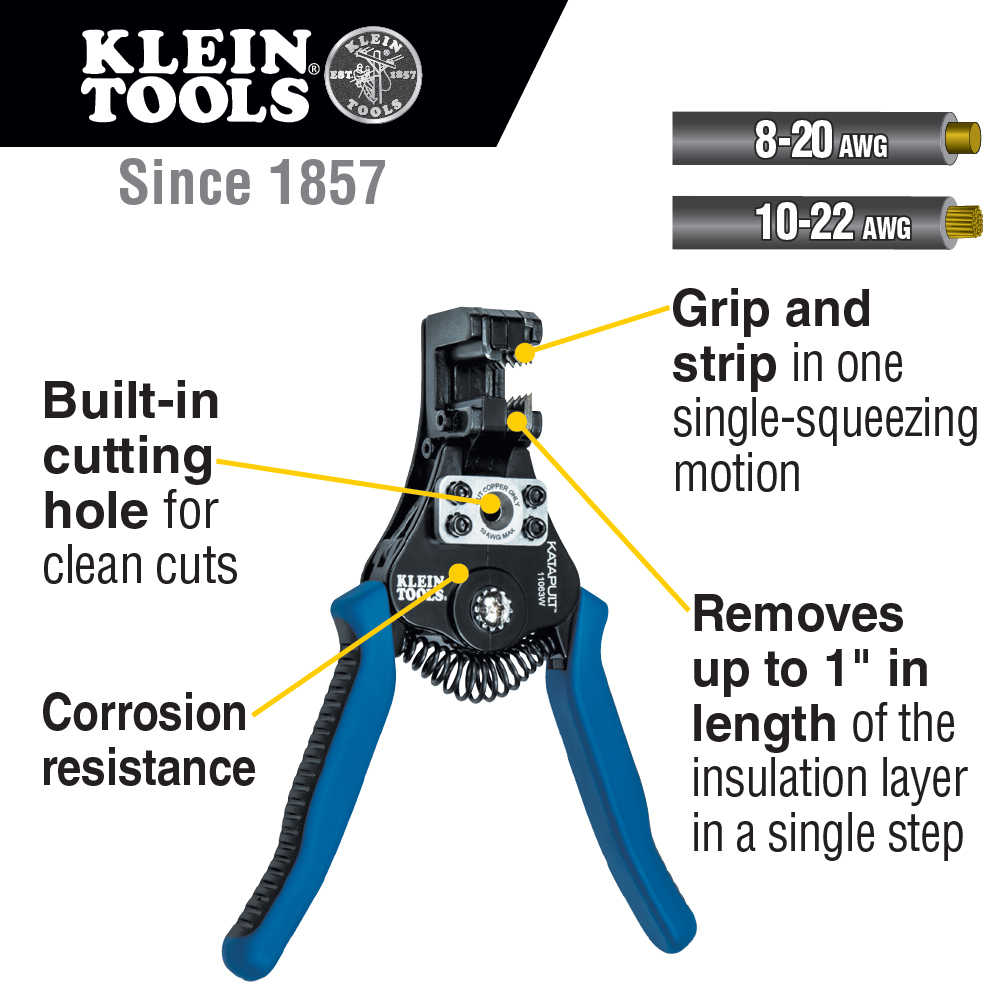

• Wire Stripper and Cutter cuts and strips 8-20 AWG solid and 10-22 AWG stranded wire with ease
• Compound action stripping - grip and strip via single-action squeezing motion

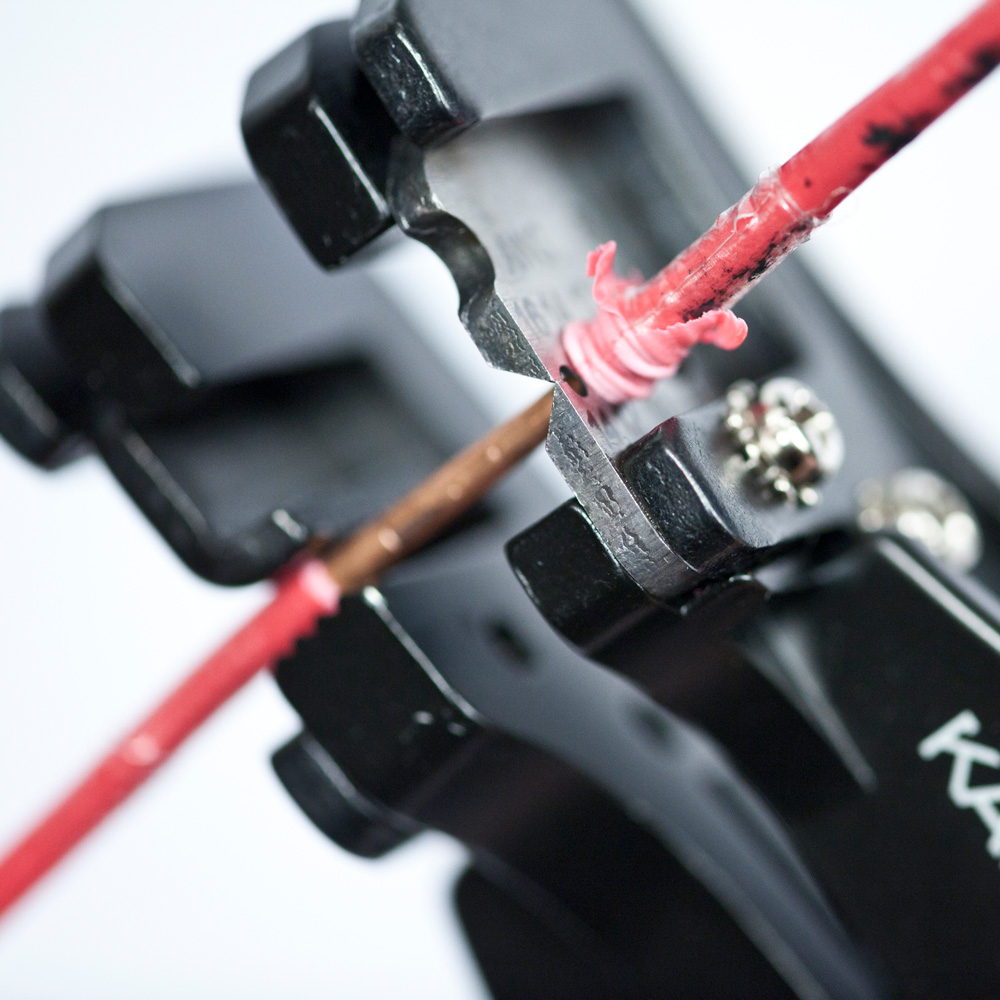

• Precision machined stripping holes easily remove insulation without damaging the wire
• Removes up to 1-Inch (25 mm) in length of the insulation layer (jacket layer) in a single step
• Tension loaded wire-grip gently holds the cable while retaining cable geometry
• Cast alloy chassis with heavy-duty Ecoat finish for corrosion resistance and durability

Warnings

• Always wear approved eye protection.
• Never use on or near live electrical circuits.
• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

Specifications

• Strips and Cuts: 8-20 AWG Solid, 10-22 AWG Stranded
• Hold-Open Spring: Yes
• Application: Wire Stripping and Cutting
• Handle Color: Blue/Black
• Overall Length: 6.594" (16.8 cm)
• Material: Cast Alloy Chassis with Heavy-Duty Ecoat Finish
• Height: 5.2500 in
• Width: 5.2500 in
• Depth: 6.6250 in
• Weight: 0.7500 lbs
