Features

• Time Saver - maximum cycle time of 8 seconds
• Patent-Pending Auto-Retract Technology - Pressure-sensing technology accurately detects punch completion and automatically retracts the ram, for longer tool life
• 360° Rotating Head - Rugged, patent-pending swivel design to punch at any angle
• Compact, Ergonomic Design - Ergonomic tapered grip for easy one-handed operation
• Slug-Buster® knockout set punch profile splits slugs for easy slug removal
• Knurled edge on punches for better grip
• New die design optimized for widest range of materials and drivers
• 1/2" - 2" conduit size Slug-Buster® punches
• 2-1/2" - 4" conduit size Standard Round punches
• 1/2" - 4" conduit size dies
• 7/16" hydraulic draw stud
• 3/4" hydraulic draw stud
• 1-1/8" hydraulic draw stud
• (2) 18V Li-ion 3.0Ah Batteries
• 120V AC Charger

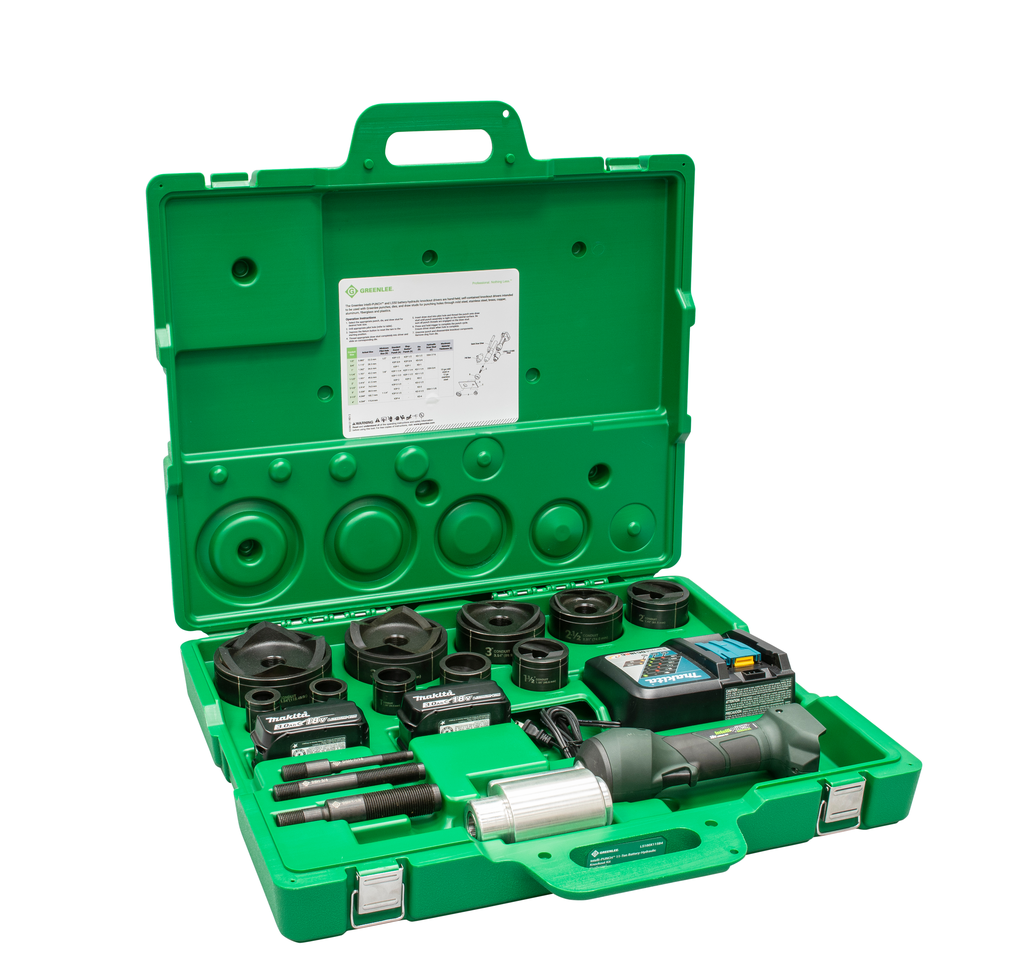

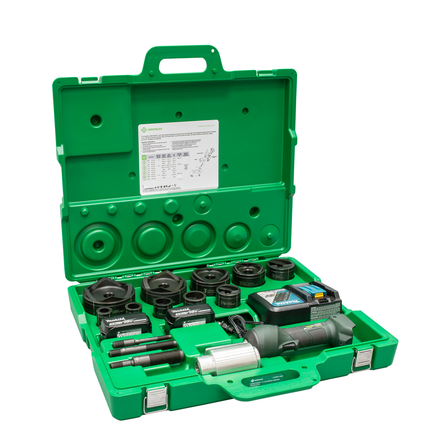

• KCC-LS4 carrying case

Application

• For punching holes in mild steel, stainless steel, aluminum, brass, copper, fiberglass and plastics

Specifications

• Country of Origin: United States
• Shape: Round
• Type: Intelli-PUNCH™ 11-Ton Battery-Hydraulic Knockout Kit
• Size: 1/2" - 4" conduit size knockouts (hole size - 0.89" - 4.54" or 22.5 mm - 115.4 mm)
• Material: Punch up to 10 ga mild steel or 12 ga stainless steel
• Consists Of: Intelli-PUNCH knockout driver
