Overview

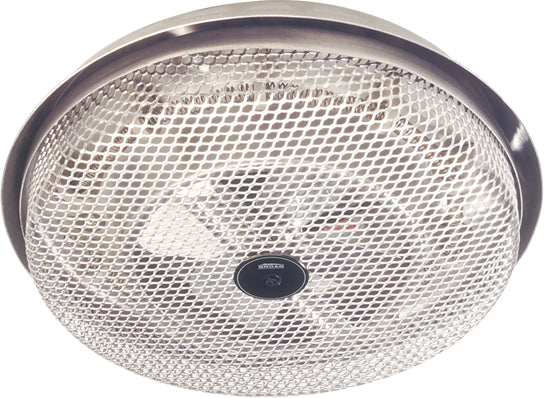

Fan-forced ceiling heater disperses heat evenly from a unit that extends only 2-3/4" from the ceiling.

• Satin-finish aluminum grille and a low-profile housing will complement any décor

• Chrome alloy, wire element delivers 1250 Watts of instant heat with no waiting time

• A permanently lubricated motor, automatic overheat protection, and UL listing ensures reliable, safe operation

• Mounts easily to any standard 3-1/2" or 4" round, or 4" octagonal ceiling electrical box providing versatile choices for installation

• Control operation with a choice of wall controls, available separately. (Model 86W Line-Voltage Thermostat, Model 59W/59V 60-Minute Timer or Model 61W/61V 15-Minute Timer)

• Ceiling heaters are intended to provide supplemental heat and not to take the place of a home's main heat source

Specifications

• Number of Heat Settings: On-Off
• Watts and Amps at 240 Volts: N/A
• cUL Listed: No
• Warranty: 1 Year
• BTU/hr at 208 Volts: N/A
• Controls: Wall Switch
• Grille Dimensions - Height: 1-3/4"
• Thermostat: No
• Housing Dimensions - Width: 11"
• BTU/hr at 240 Volts: N/A
• Grille Dimensions - Width: 9-13/16" Diameter
• Housing Dimensions - Height: 2-3/4"
• UL Listed: Yes
• Housing Material: Aluminum
• Portable: No
• Heater Type: Surface Mount Ceiling
• Watts and Amps at 208 Volts: N/A
• Project Pack: No
• Housing Finish: Aluminum
• BTU/hr at 120 Volts: 4266 BTU/hr
• Auto Shut-off: Yes
• Watts and Amps at 120 Volts: 1250 Watts and 10.7 Amps
• Air Mover Type: Fan
