Performance Overview

• Reach Height: 31 ft
• Size: 32 ft
• Load Capacity: 300 lbs
• Approx. Closed Length: 16 ft
• Style: Multi Section

Features

• Interlocking Side Rails with internal rail guides on bottom of fly section securely connect rails
• Exclusive ALFLO® rung joint means TWIST-PROOF® performance
• Base and fly separate easily to use base section as single ladder

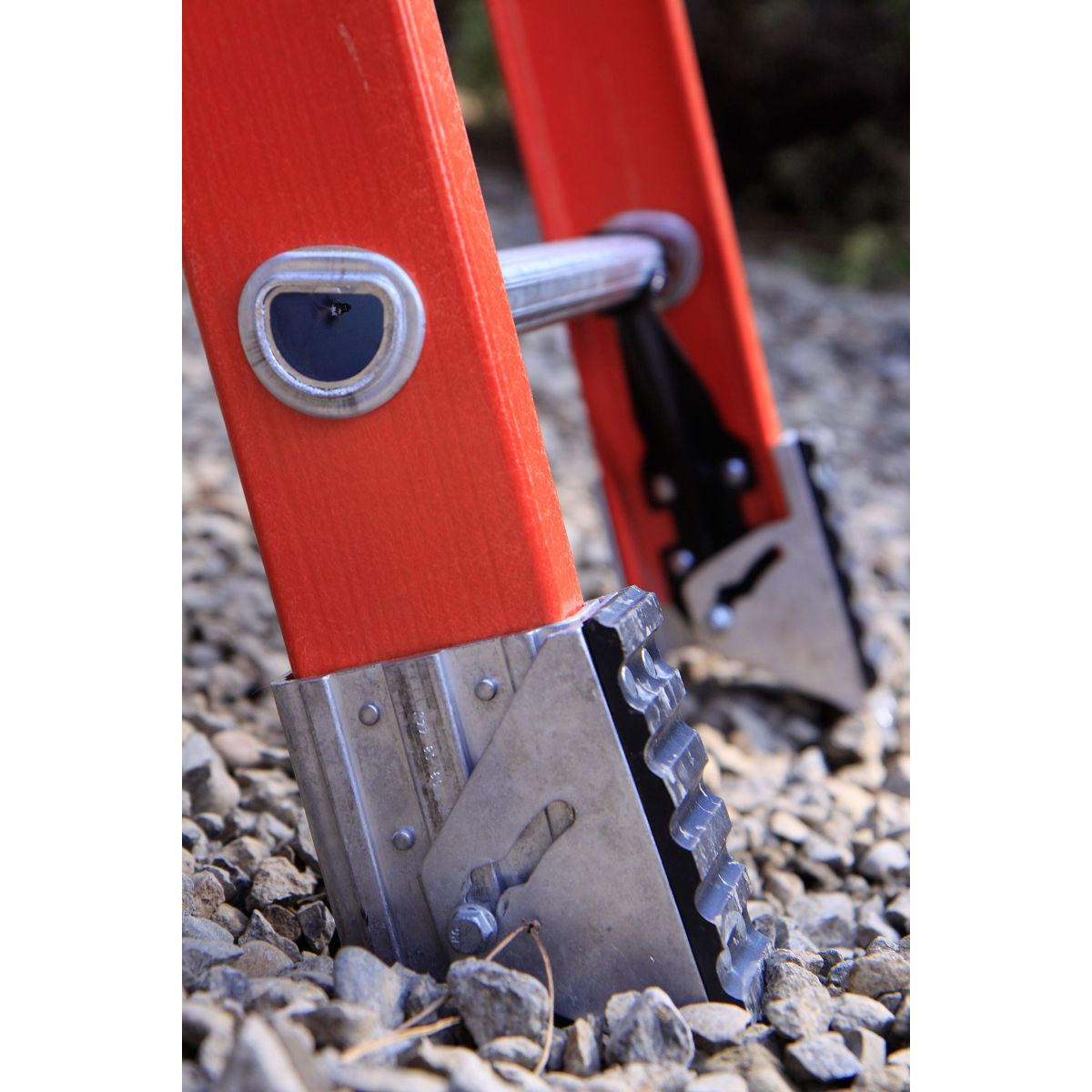

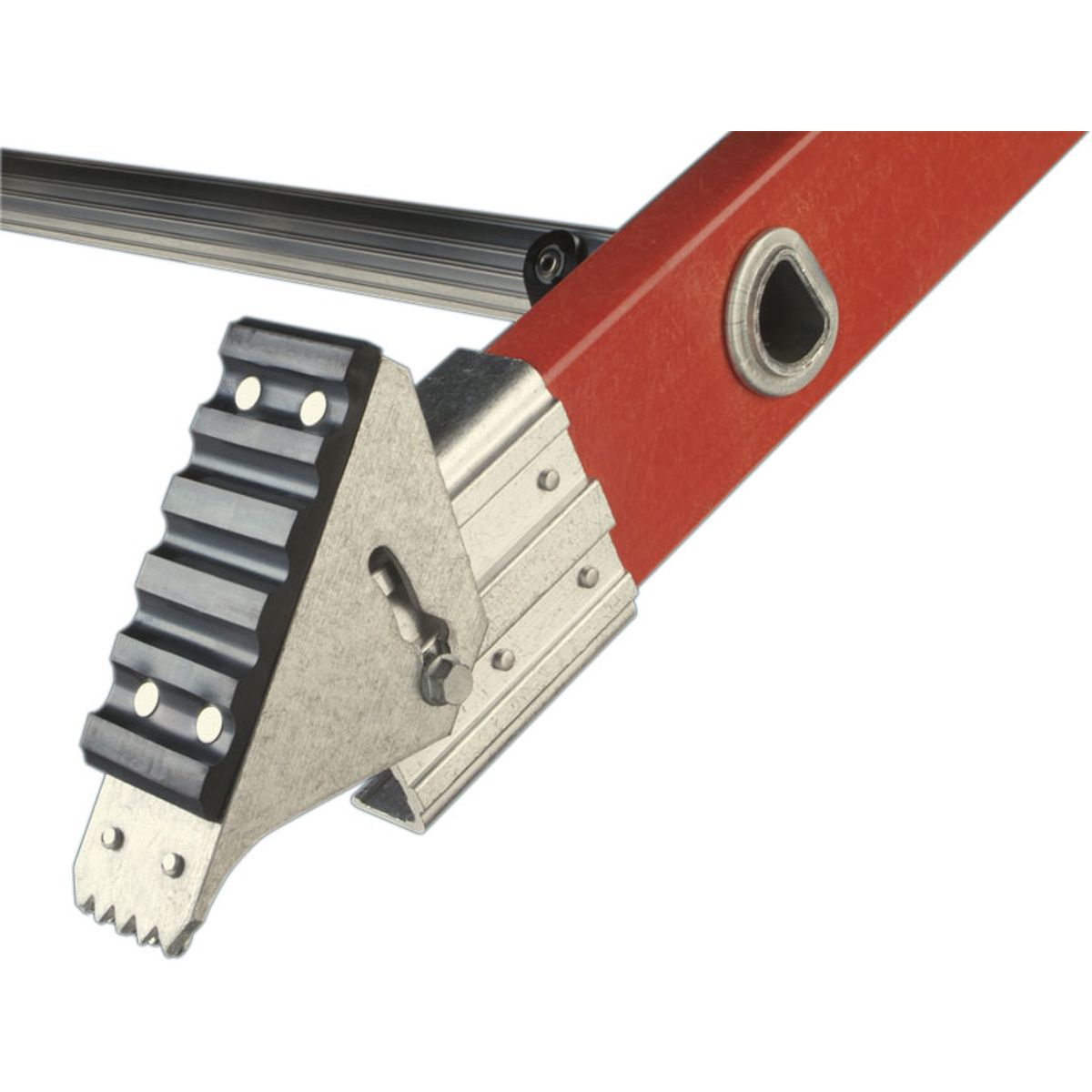

• Combination rail shield bracket and shoe with SHU-LOK® and slip-resistant pad
• Mar-resistant molded end caps
• Pre-pierced holes for easy field installation of accessories

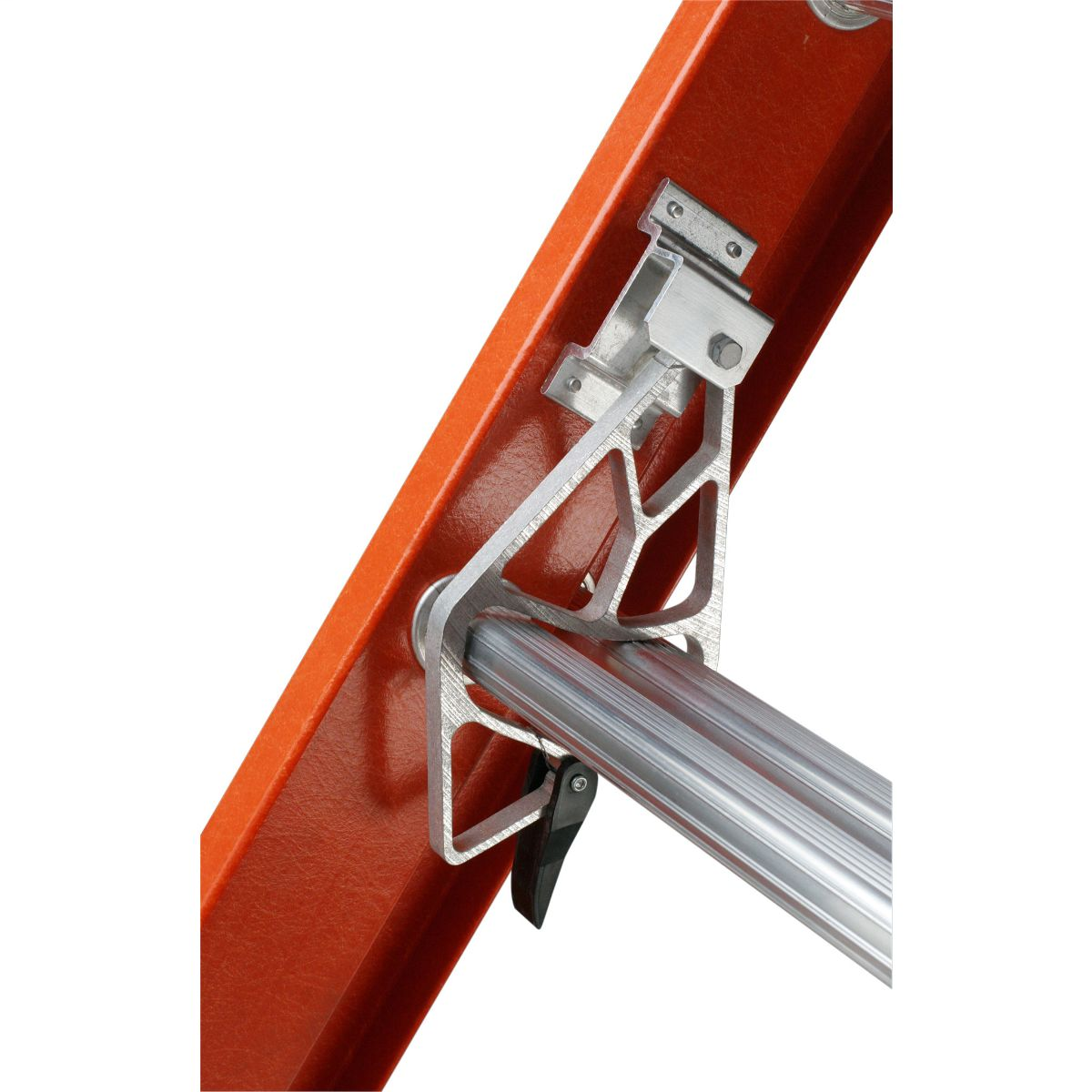

• Heavy Duty extruded rung locks are spring loaded to operate smoothly

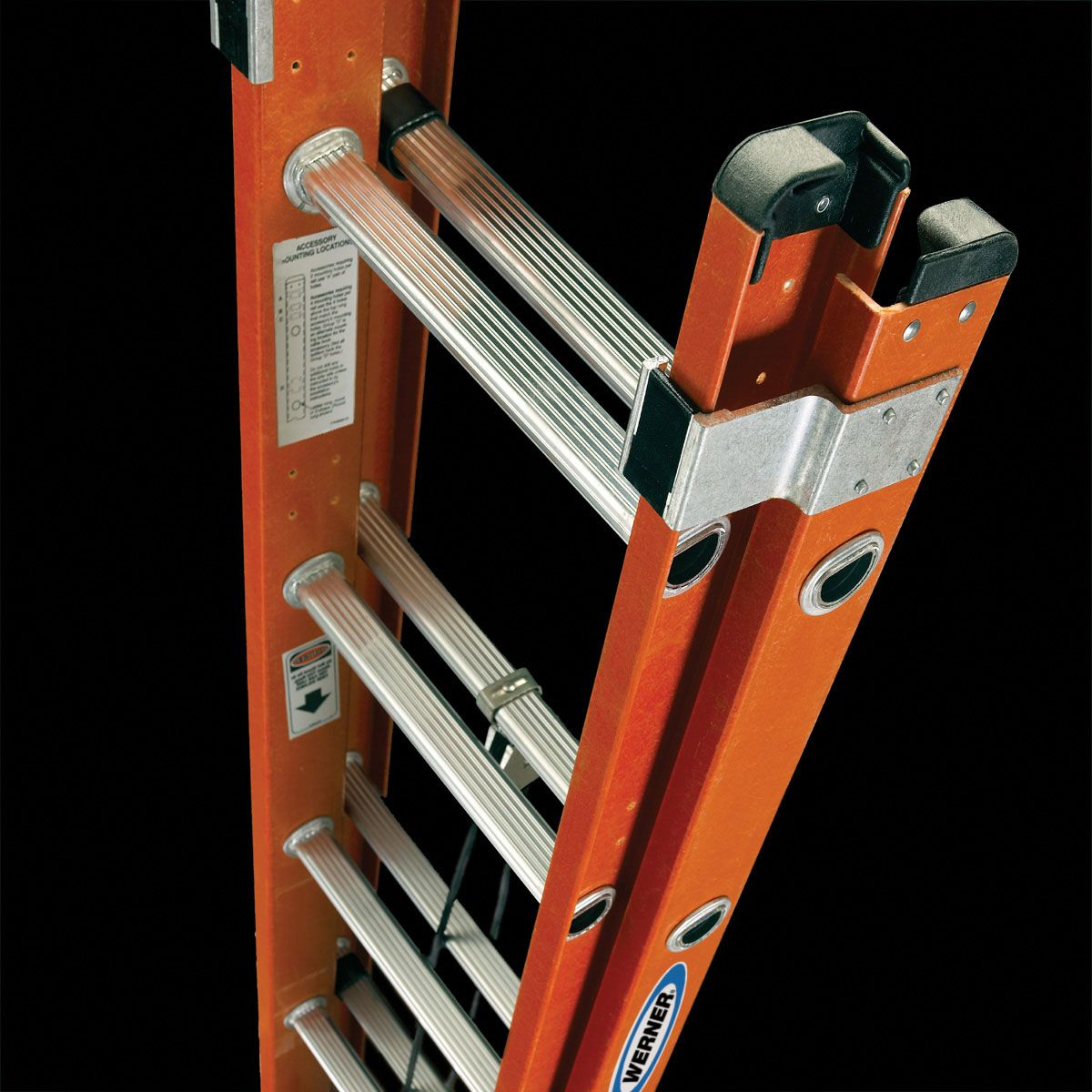

• External guides at top of base section securely interlock rails
• 1-5/8 in slip-resistant TRACTION-TRED® D-rungs
• Smooth operating pulley with polypropylene rope
• Molded rung braces on bottom step for increased durability

Specifications

• Extended Length: 29 ft
• Base Width: 19 in outside shoes
• Certifications: ANSI A14.5 (2007); OSHA
• Style: Multi Section
• Load Capacity: 300 lbs
• Type: Type IA Duty Rating
• Foot Material: Slip-resistant pad
• Max Working Length: 29 ft
• Material: Fiberglass
• Number of Sections: 2
• Size: 32 ft
• Rung Type: D-Rung
• Reach Height: 31 ft
• Approx. Closed Length: 16 ft
• Approx. Cu. Ft. Per Unit: 13.7
• Approx. Shipping Wt. Lbs.: 71.5
• Performance Rating: 4 star

Dimensions

• Flange Dimension: 1-3/16 in
• Rung Dimension: 1-5/8 in
• Fly Width: 16 in
• Rails Dimension: 3-5/16 in

Accessories

• 86-1 Spur Shoe
• 94-2 Ladder CInch
• AC10-20-03 3 Rung Long Body Ladder Jack
• PK70-2 LeveLok Base Units
• AC22 Paint Can/Bucket Hanger
• 91-2 Adjustable Pole Lash with Angle Brackets
• PK70-1 LevelLok Leveler with Base Units
• 92-88 Cable Hook and V-Rung Assembly
• AC10-20-02 2 Rung Long Body Ladder Jack
• 74-1 Cable Hook
• PK80-2 Level-Master Automatic Leveler
• AC10-14-02 2 Rung Short Body Ladder Jack
• AC20 Paint Can Hook

Additional D6200-2 Series Models

• D6220-2
• D6224-2
• D6216-2
• D6232-2
• D6228-2
• D6240-2
• D6236-2
