Description
Features
- Smooth throats for easy wire pulling
- Retained stainless steel cover screws
Application
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices.
- For use with EMT conduit
General
- Volume (cu.in.): 11.8
- Trade Size (inches): 1
- Material: Die Cast Aluminum

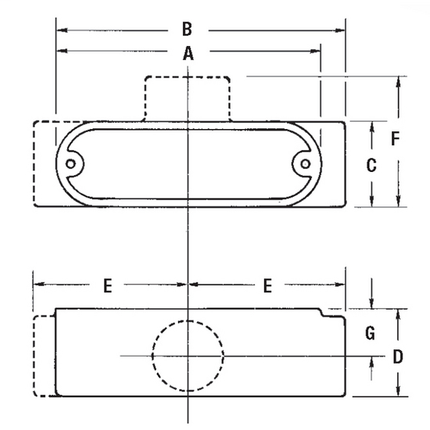

Dimension Information
- G (inches): 1
- B (inches): 5 15/16
- A (inches): 5 3/8
- F (inches): 2 5/8
- D (inches): 1 7/8
- E (inches): 3 1/2
- C (inches): 1 3/4
Accessories & Components
- Gasket-Composition: GKV-3
- Cover-Stamped Aluminum: SCV-3
- Cover-Die Cast: CV-3
- Gasket-Neoprene: GKN-3
Packaging
- Inner Package: 5
- T&B Weight Per UOM: 0.56 lbs. Each
- Package Width: 10
- T&B Sold in UOM: Each
- Outer Package: 25
- Package Length: 14.7
- Package Height: 7.4
- Order Multiple: 5
Application Support
Product OverviewD-Pak Merchandising System
Certifications
- RoHS Compliance: Yes
- UL
More Information
Manufacturer Catalog Number
BC-3
Weight
12.7500
Product Size
1 inches
