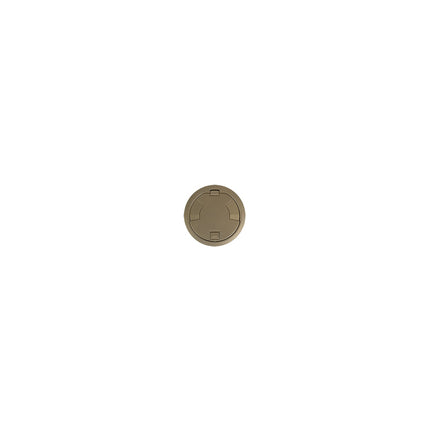

8AT Prewired Evolution‚Ñ¢ Poke Thru Device, Surface Style Cover, Brass - Electrical Floor Access Solutions

The 8AT Prewired Evolution‚Ñ¢ Poke Thru Device by Wiremold is designed for retrofit and new construction applications, providing recessed access to power, communications, and audio/video services below floor level. This device is ideal for commercial buildings with open-space architecture, including meeting rooms, classrooms, healthcare facilities, and kiosks. It offers a durable surface style cover in satin brass finish, designed to sit on top of finished floor surfaces such as carpet, tile, wood, polished concrete, or terrazzo. The device supports electrical distributors and lighting solutions by offering configurable service capacity recessed safely beneath the floor.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 8ATC2PBS
• Country of Origin: USA
• Made in USA: Yes
• Dimensions: 9.25 inches (Width) x 9.25 inches (Height) x 16.25 inches (Depth)
• Core Hole Size: 8 inches
• Cubic Capacity: 24.5 in¬≥
• Cable Entry: Knockouts & Pass Through
• Product Weight: 14.9 lbs
• Order Minimum: 1 unit
• UPC: 786564089865

Features

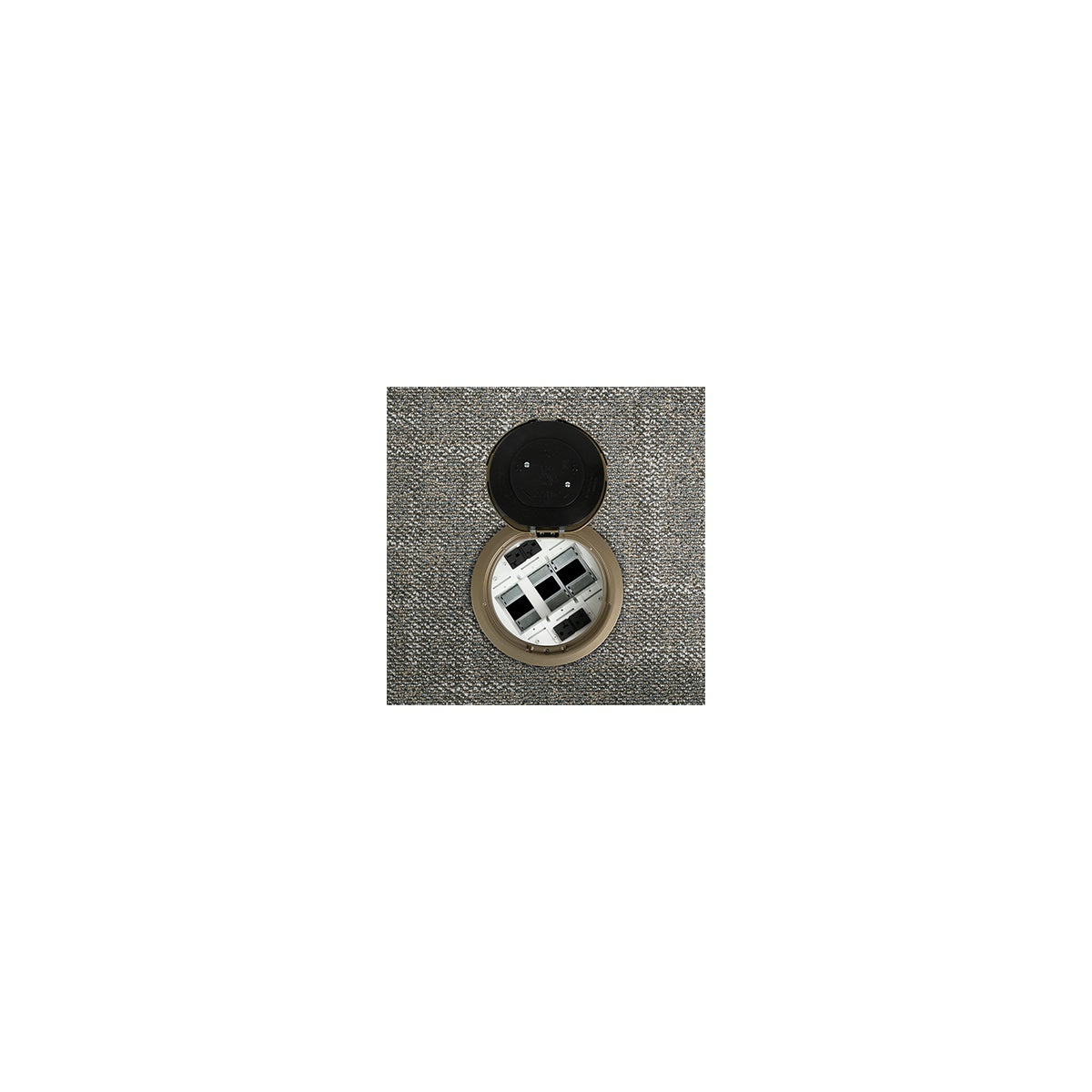

• Five recessed compartments recessed 4" (102mm) below floor level for power, communications, and A/V devices, providing maximum device protection and longevity.

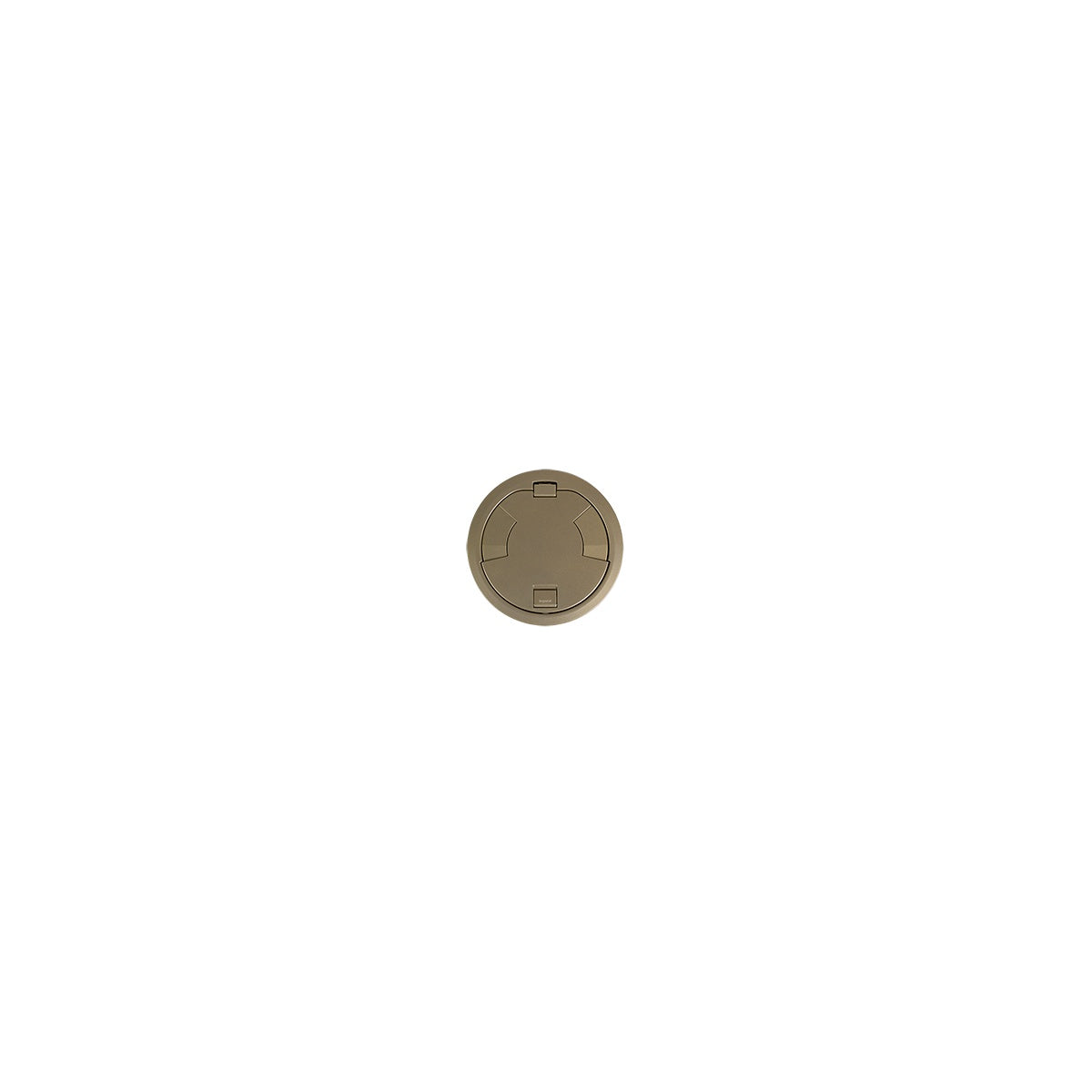

• Surface style aluminum cover in satin brass finish designed to sit on finished floor surfaces for easy integration with carpet, tile, wood, polished concrete, or terrazzo floors.
• Includes two proprietary tamper-resistant 20A duplex receptacles prewired and preinstalled in side compartments.
• Three open compartments for additional power, data, or A/V devices to configure services based on space requirements.
• Durable die-cast aluminum cover assembly with an 8¬∞ beveled edge to meet ADA accessibility guidelines and reduce tripping hazards.

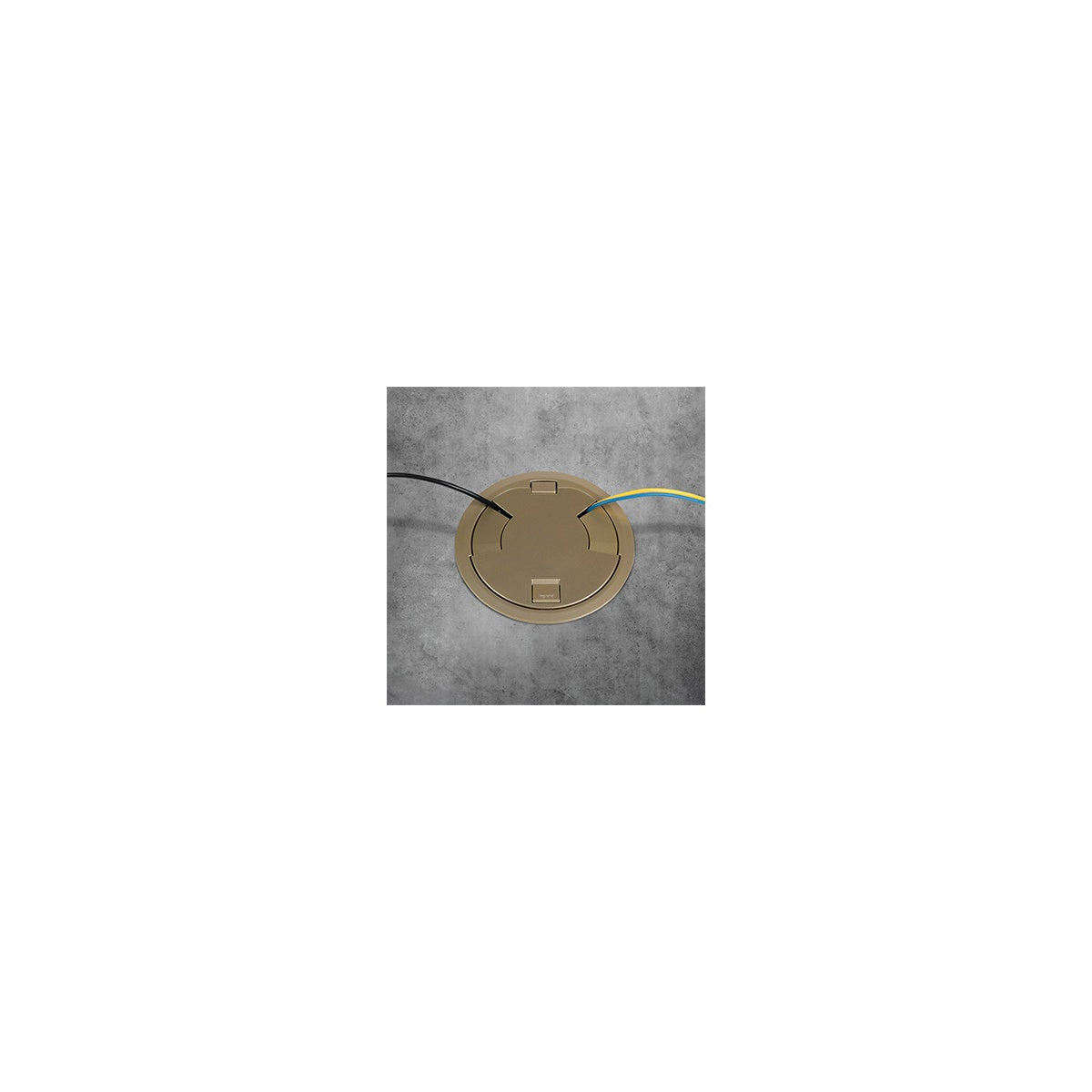

• Auto-close egress doors lock open and close around cables, minimizing cable exposure and tripping risks.
• ‚ÄúStep-on-it‚Äù installation allows quick, single-person installation without additional fasteners or installers.
• Pre-pour sleeve option available for cast-in-place core holes, reducing installation labor and cost.
• UL Listed and UL Fire Classified for up to 2-hour rated floors maintaining fire classification.
• Meets UL scrub water exclusion requirements for tile, carpet, and wood-covered floors.
• Suitable for use in air handling spaces per National Electrical Code Sec 300-22(C).
