Features

• Leviton’s Industrial Grade Straight Blade Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Straight Blade Devices of unmatched flexibility and dependability.

NEMA

• 5-20R

Color Variations

• Ivory

Specifications

• Country of Origin: United States
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL498: File E13399
• Warranty: 10-Year Limited

Electrical Specifications

• Amperage: 20 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self Grounding
• Pole: 2
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Voltage: 125 VAC
• Wire: 3

AC Horsepower Ratings

• At Rated Voltage: 1 HP

Material Specifications

• Body Material: Thermoplastic
• Face Material: Thermoplastic
• Ground Clips: Brass-Plated
• Grounding Screw: Steel 8-32
• Line Contacts: Brass Double Wipe .031 Thick
• Strap Material: Steel
• Terminal Screws: Steel 8-32
• Termination: Side Wire

Product Features

• Color: Brown

Environmental Specifications

• Operating Temperature: -40°C to 60°C

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, White-Neutral

Downloads

Instruction Sheet

Wiring Diagram

Dimensional Drawing

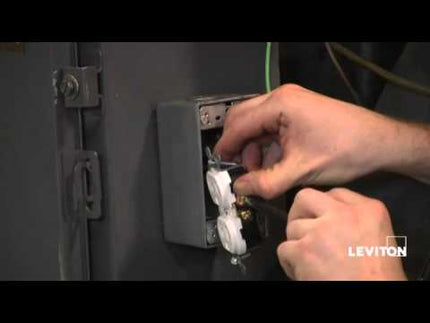

Videos
