Description
Features
- Delivering the power you need, where you need it. This is not just a floor box. Leviton delivers the whole solution; providing access to power connectivity and high-performance network infrastructures for every commercial setting. It can be used with finished floors made of wood, tile, vinyl, terrazzo, carpet and concrete in settings such as education, offices & health care facilities, retail, and hospitality. The Leviton Concrete Floor Box System includes:
- PVC Floor Box
- Power and Data Conduit Reducers
- Low Voltage Divider

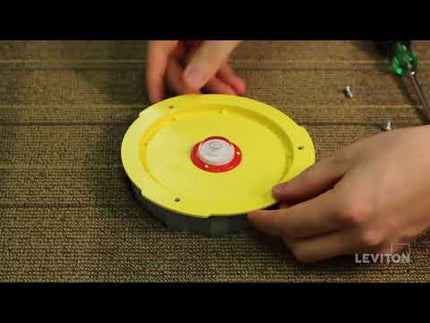

- Protective Cover with Bullseye Leveling Indication
- Elevation Screws *Leveling ring and top plate are sold separately. Click Here to view these device specifications on ARCAT
Specifications
- Country of Origin: Mexico
- RoHS Compliant: True
Standards & Certifications
- Applicable Standards: UL514C, UL 486 A-B, CSA C22.2 No. 85-14
- Certification/Listing: cULus
- UL File No.: E13397
Material Specifications
- Color: Gray
- Material: PVC
Mechanical Specifications
- Conduit Feeds: Parallel
- Conduit Selection: Accepts 0.75”, 1.0”, 1.25”, 1.5” and 2.0” schedule 40 and schedule 80 rigid PVC conduit
- Cubic Inch Capacity: 131.2 cubic inches
- Data Hub Size: 2.0"
- Minimum Depth of Pour: 3.75"
- Power Hub Size: 1.25"
Product Features
- Device Type: Box System
- Type: Concrete
Environmental Specifications
- Flammability: UL94, 5VA
- Operating Temperature: -35°C to 75°C
