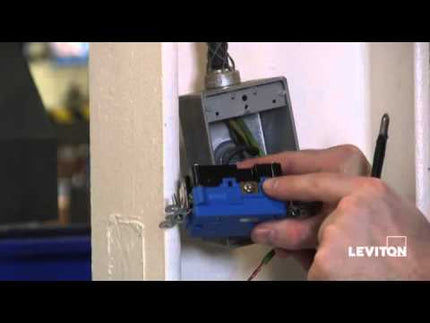

Description
Features
- Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
NEMA
- 5-15R
Color Variations
- Brown
Specifications
- Country of Origin: Mexico
- RoHS Compliant: False
Standards and Certifications
- ANSI: C-73
- Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
- NEMA: WD-6
- NOM: 057
Electrical Specifications
- Amperage: 15 A
- Current Limiting: Full Rated Current
- Dielectric Voltage: Withstands 2000V per UL498
- Pole: 2
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Voltage: 125 VAC
- Wire: 3
Material Specifications
- Body Material: Thermoplastic Nylon
- Clamp Nuts: Zinc-Plated Steel
- Face Material: Thermoplastic Nylon
- Grounding Screw: Brass-Plated Steel
- Line Contacts: Brass Triple-Wipe
- Shutter Mechanism: Delrin® Acetal
- Terminal Screws: Brass-Plated Steel
- Yoke: Zinc-Plated Steel
Product Features
- Brand: Decora Plus
- Color: Ivory
- Device Type: Duplex Receptacle Outlet
- Function: Surge Protective
- Grade: Commercial Specification Grade
Performance Data
- Diagnostics: Indicator Light
- Joules Rating: 720
- MCOV: 150V rms
- Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
- Noise Rejection: -30dB at 500kHz-30MHz
- Nominal Discharge Current Rating: 3kA
- Short Circuit Current Rating: 5kA
- VPR: L-N: 600V, L-G: 700V, N-G: 600V
Environmental Specifications
- Flammability: Rated V-2 per UL 94
- Operating Temperature: -40°C to 60°C
Mechanical Specifications
- Product ID: Ratings are permanently marked on device
- Terminal Accom.: 14-10 AWG
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Termination: Back or Side Wire
- Torque Range: 14-16 inch pounds
Warranty
- Warranty: 5-Year Limited
