Features

• True Internal Bonding Jumper-no external grounding strap required, tamper-proof internal jumper protected from the environment.
• Exceeds code requirements for long conduit runs to permit linear movement.

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39131707 Electrical conduit coupling
• IGCC: 5548 Electrical conduit coupling
• Brand Name: T&B

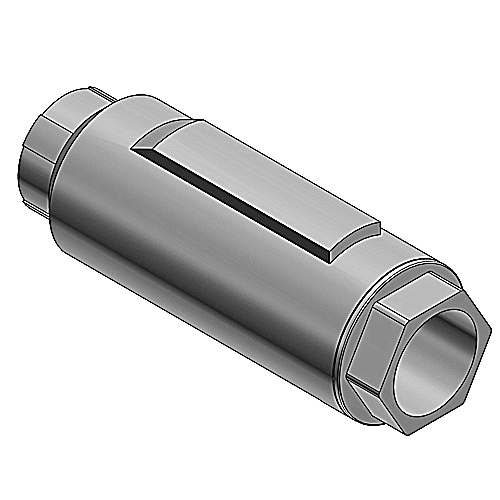

• Type: XJG Expansion Couplings
• Special Features: No Disassembly Necessary to Install. Fast, Simple, and Requires Fewer Steps
• Application: Allows for The Contraction and Expansion of a Conduit Run Without Reducing The Mechanical or Bonding Integrity of The Raceway
• Standard: UL E23018, CSA
• Trade Size: 2-1/2 Inch
• Outside Diameter: 4.96 Inch
• Length: 16.12 in
• Material: Malleable Iron

European Specifications (ETIM)

• ETIM: EC000939 Coupler for installation tubes
• Material: Metal
• Material quality: Other
• Surface protection: Other
• Model: Thread
• Two piece: N
• With inspection opening and cover: N

Packaging

• Outer Quantity: 1
• Outer Dimensions (inches): 16.37x5x5.37
• Weight Uom: 22.63 lbs. Each
