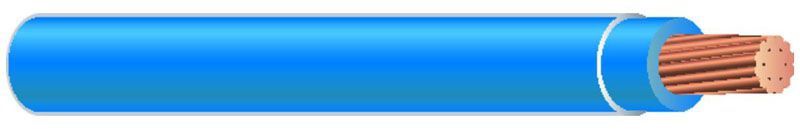

The THHN-12-BLU-19STR-CU-2500S/R cable type provides reliable electrical conductivity for residential house wiring applications. It features a 12-gauge blue stranded copper cord design engineered for consistent performance in conduit and raceway installations.
- 19-strand copper conductor with thermoplastic insulation designed to connect securely to terminals and electrical connector applications
- Length: 2500 feet supplied on spool/reel for convenient installation
- Color: Blue jacket for easy circuit identification in light and power applications
- Rating: Suitable for dry and damp locations with excellent heat resistance, including underground conduit runs and direct burial applications
Features
Additional Information
- RoHS Compliant
- Jacket Thickness 0.004 Inch
- Insulation Thickness 0.015 Inch
- Applicable Standard ICEA S-95-658/NEMA WC70, NEC 310
Specifications
- Type: THHN
- Voltage Rating: 600 V
- Current Rating: 20 Ampere (60/75/90 Deg C)
- Conductor Material: Annealed Bare Copper
- Conductor Size: 12 AWG
- Stranding: 19 Strands
- Jacket Material: Nylon
- Insulation Material: PVC
- Insulation Color: Blue
- Outer Diameter: 0.131 Inch
- Length: 2500 Ft
- Temperature Rating: 90 Deg C (Dry), 75 Deg C (Wet)
- Weight: 26 Lb/Mft
- Package Type: Reel/Spool
- Approval: UL 83, CUL
