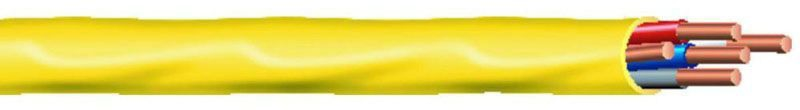

WIRE NM-B-12/4-CU-WG-250CL WIRE
WIRE NM-B-12/4-CU-WG-250CL WIRE
Total Price: $0.98 per foot Sold in increments of 250 foot
Description
Features
- NM-B Cable is Primarily Used in Residential Wiring as Branch Circuits for Outlets, Switches and Other Loads
- NM-B Cable May be Run in Air Voids of Masonry Block or Tile Walls Where Such Walls are Not Wet or Damp Locations
- NM-B Cable is Designed for Easier Pulling, Resulting in Easier Installation
Specifications
- Type: NM-B
- Voltage Rating: 600 V
- Current Rating: 16 Ampere
- Conductor Material: Annealed Soft Copper
- Conductor Size: 12 AWG
- Ground Type: With Ground Wire
- Number of Conductors: 4
- Stranding: Solid
- Jacket Material: Yellow PVC
- Insulation Material: PVC
- Color Code: Black, White, Red, Blue
- Ground Conductor Size: 12 AWG
- Outer Diameter: 0.385 Inch
- Length: 250 Ft
- Temperature Rating: 90 Deg C
- Weight: 132 Lb/MFt
- Package Type: Coil
- Approval: UL 83/719
Downloads
Specification/TechnicalMore Information
Manufacturer Catalog Number
NM-B-12/4-CU-WG-250CL WIRE
Weight
0.132628
Length
250
Color
Yellow
Conductor Material
Copper
Conductor Size
12
Current
16 amperes
Grounding
With Ground Wire
Strands
12/4
Voltage
600 volts
Wire Color
Yellow
