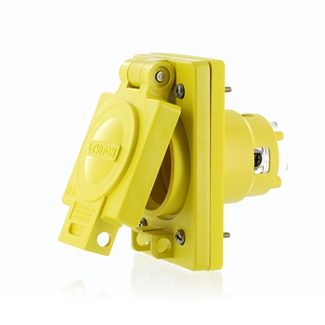

Features

• BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
• ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
• MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
• DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion

NEMA

• 5-20R

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• CSA: C22.2 No. 42
• NEMA: WD-6
• NOM: 057
• UL: 498
• Warranty: Limited Lifetime Warranty

Electrical Specifications

• Amperage: 20 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3

Material Specifications

• Blades/Contacts, Terminal Clamps: Electroless Nickel-coated Brass
• Cover Gasket: Santoprene TPV
• Cover/Lid: Valox PBT
• Mounting and Assembly Screws: Stainless steel, non-magnetic
• Terminal Screws: Electroless Nickel-coated Brass
• Torsion Spring Mechanism (Flip Lids): Stainless Steel
• Wiring Module: Nylon
• Wiring Module Mounting Cup: Valox PBT

Product Features

• Brand: Wetguard
• Color: Yellow
• Device Type: Straight Blade Outlet

Environmental Specifications

• Enclosure Rating: NEMA 4, 4X, 12 IEC IP66
• Environment: Wet
• Flammability: Rated V-2 per UL 94 (wiring module)
• Operating Temperature: -40°C to 60°C

Mechanical Specifications

• Product ID: Ratings and NEMA I.D. permanently marked on device
• Terminal Accom.: #16 AWG to #10 AWG
