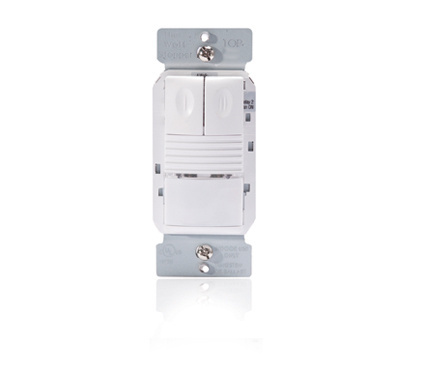

Wattstopper® PIR Multi-Way Dual-Relay, Wall Mounted Occupancy Sensor, 800W at 120V/1200W at 277V, Light Almond
SKU: #252902
Part: #PW302LA
UPC: 754182935307
Wattstopper® PIR Multi-Way Dual-Relay, Wall Mounted Occupancy Sensor, 800W at 120V/1200W at 277V, Light Almond
SKU: #252902
Part: #PW302LA
UPC: 754182935307
Next day delivery
Description
Wattstopper® PIR Multi-Way Dual-Relay Wall Mounted Occupancy Sensor – Occupancy Sensor
The Wattstopper® PW-302 passive infrared (PIR) wall switch occupancy sensor is designed for automatic lighting control based on occupancy detection. Ideal for retrofit projects and small enclosed spaces such as small offices, conference rooms, and break rooms, this sensor provides multi-way control of one or two independent lighting loads or circuits. It is a reliable solution for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking efficient, code-compliant occupancy sensors.
- Voltage: 120/240/277 VAC, 50/60 Hz (also available 347 VAC model)
- Load Limits Relay 1: 1000W tungsten ballast, electronic ballast, LED, 1/4 HP @120V; 1200W ballast, LED, 1/4 HP @240/277V
- Load Limits Relay 2: 800W tungsten ballast, electronic ballast, LED, 1/6 HP @120V; 1200W ballast, LED, 1/6 HP @240/277V
- Time Delay Adjustment: 5 to 30 minutes with walk-through and test modes
- Coverage: Major motion 35’ x 30’, Minor motion 20’ x 15’
- PIR Sensitivity: High or Low (50%) adjustable
- Dimensions (L x W x D): 2.73” x 1.75” x 1.81” (69mm x 44mm x 46mm)
- Multi-Way Capability: Supports up to four control locations
- Compliance: UL and cUL listed; complies with 2017 NEC requirements
- Country of Origin: China
- Manufacturer: Pass & Seymour
- Color: Light Almond
Specifications
- Two relays for independent control of dual lighting loads or circuits
- Advanced PIR technology with vandal-resistant lens for precise and durable coverage
- Selectable Manual-ON or Auto-ON modes per relay for flexible control
- Walk-through mode turns lights off after 3 minutes if no motion is detected post initial occupancy
- Optional light level sensor holds secondary load off when ambient light exceeds preset threshold
- Selectable audible and visual alerts warn prior to load shutoff
- Test mode enables quick and easy sensor adjustments
- Zero-crossing relay operation extends relay life
- Compatible with decorator-style wall plates
- Optional neutral connection with break-off tab for 2-wire or 3-wire applications
- Multi-way wiring allows multiple sensors to control common loads with synchronized operation
- LED indicator signals occupancy detection
