Features

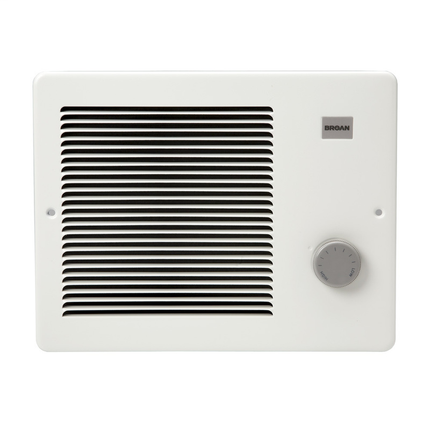

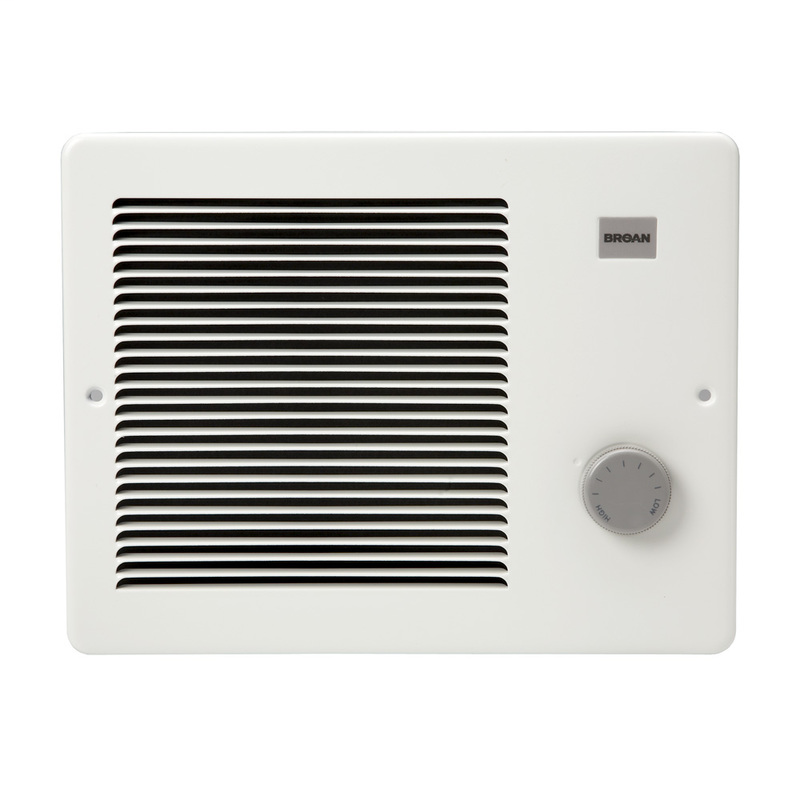

• White grille has downflow louvers to direct heat gently toward the floor and a one-piece design with baked enamel finish for durability
• Adjustable, front-mounted thermostat offers a simple way to control the level of heat
• Rapid warm up time due to an efficient Alloy heating element that provides comforting heat in seconds
• Heater may be recessed or surface-mounted, depending on your application (surface mounting requires Model 84 surface mount kit)
• Permanently lubricated motor, high efficiency blower wheel, Nickel-chrome alloy heating element and a manual reset thermal overload protector combine to ensure reliable operation and years of trouble free heating. UL Listed for safety.
• Also available in project packs (171H Rough-In Housing Kit, and 170F without thermostat or 170FT with thermostat Finish Kits) for the convenience of contractors working on multi-unit projects
• Wall heaters are intended to provide supplemental heat from a wall location and not to take the place of the home’s main heat source
• Factory wired for 1000W at 120V AC—easily converts to 500W at 120V AC or 1000W at 240V AC
• Factory wired for 1500W at 120V AC—easily converts to 750W at 120V AC or 1500W at 240V AC
• Factory wired for 2000W at 240V AC—easily converts to 1000W at 240V AC

Specifications

• BTU/hr at 120 Volts: 2560/5120 BTU/hr
• BTU/hr at 208 Volts: 3840 BTU/hr
• BTU/hr at 240 Volts: 5120 BTU/hr
• Built In Thermostat: Yes
• Number Of Heat Settings: Variable
• Auto Shut Off: Yes
• Grille Dimensions Height: 9-1/4"
• Grille Dimensions Width: 12"
• Housing Dimensions - Height: 7-3/4"
• Housing Dimensions - Width: 10-1/4"
• Warranty: 1 Year
