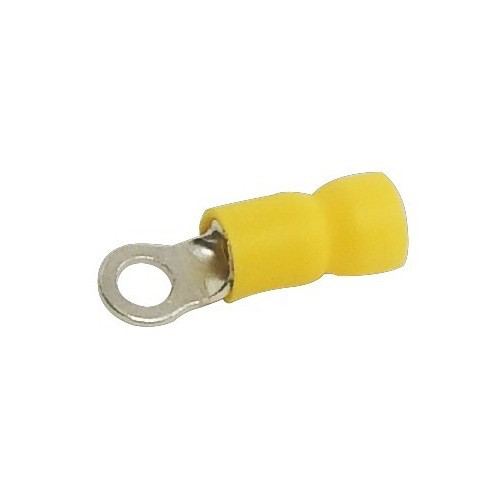

Vinyl Insulated Ring Terminals - 12-10 Wire, #10 Stud
- Morris Products
Vinyl Insulated Ring Terminals - 12-10 Wire, #10 Stud
- Morris Products
Total Price: $0.23 per each Sold in increments of 100 each
Description
Features
- Ring terminals are Vinyl Insulated
- Color Coded insulation for easy identification
- Manufactured from High Strength Electrolytic Copper Alloy
- Electro-Tin Plated for corrosion resistance
- Easy Entry Expanded Insulation eliminates strand “Hang Up”, increasing crimping rates and provides mechanical strain relief
- Wire range stamped on the surface for easy interpretation
- Terminal Barrel has Butted Seam
- Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
- 167°F (75°C) 600 Volts Max
- cULus Listed
Specifications
- Maximum Electrical Current: 22 AWG - 9 Amp, 20 AWG - 12 Amp, 18 AWG - 17 Amp, 16 AWG - 18 Amp, 14 AWG - 30 Amp, 12 AWG - 35 Amp, 10 AWG - 50 Amp
- Color: Yellow
- Wire Size: 12-10
- Stud Size: #10 in
Downloads
Spec SheetMore Information
Manufacturer Catalog Number
10064
Weight
0.25
Material
Copper
Color
Yellow
Wire Length
Wire Size
12-10
