Features

• Manufactured from seamless electrolytic copper tubing to provide maximum conductivity and tensile strength in a high quality design with no seams to split
• Funnel entry for easy wire insertion
• Electro-tin plating provides durable, long lasting resistance to corrosion

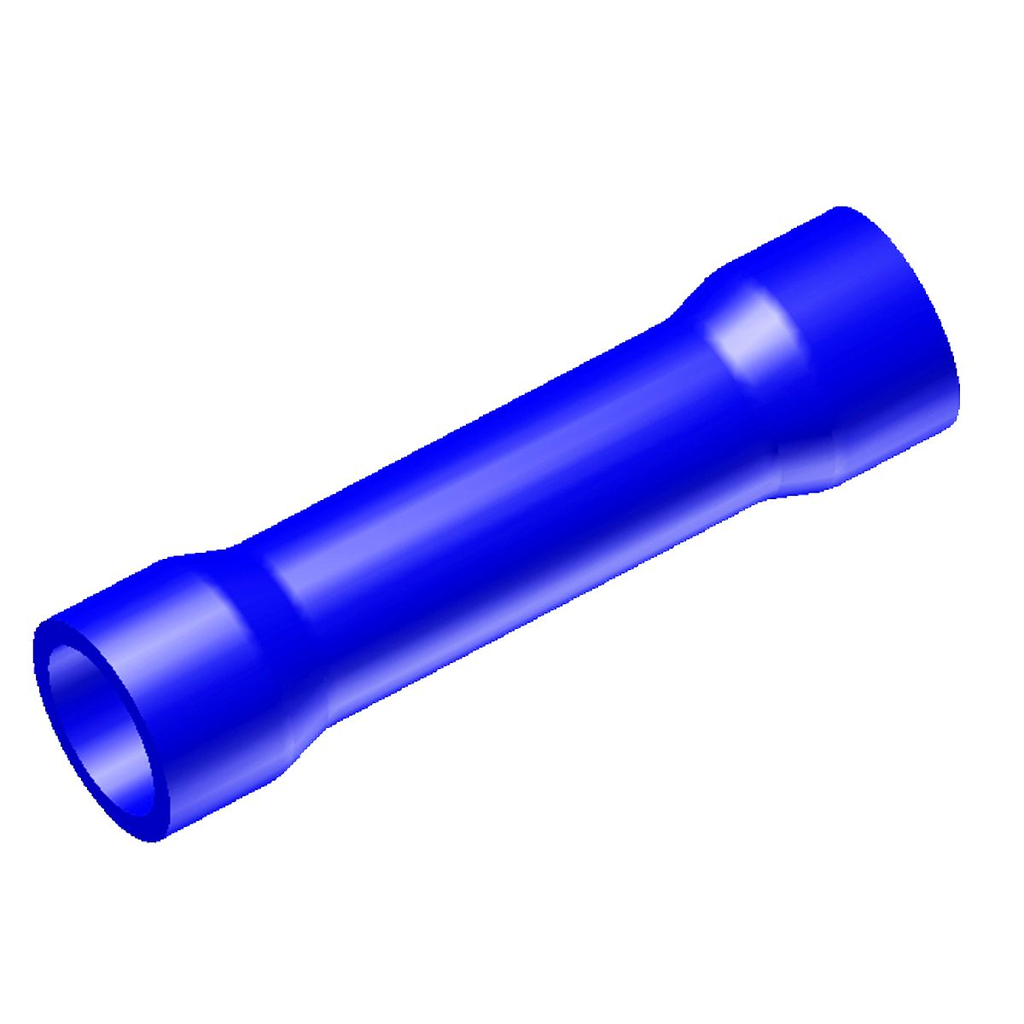

• The Type SP VINYLINK Is A PVC Insulated Seamless Butt Splice, Type SP VINYLINK Is Designed To Accommodate A Broad Range Of 600 Volt Cables, Manufactured From Seamless Electrolytic Copper Tubing: Provides Maximum Conductivity And Tensile Strength, In A High Quality Design With NO Seams To Split, Funnel Entry: Provides Easy Wire Insertion, Electro-Tin Plated: Provides Durable Long Lasting Resistance To Corrosion, Expanded Insulation Support: Lower Inventory Requirements, Red Wire Range Of 22-16: Lower Inventory Requirements, Vinyl Insulator: Economical Means Of Providing High Dielectric Values And Cable Insulation Support, Insulation Support: Yes, Conductor Type: Commercial/Aircraft Stranded Copper, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: MR8G98, MR8-89-1, MR15 Tool, Color Code: Blue, Wire Strip Length: 1/4 IN

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• ChannelSightWidgetId: 705
• Conductor - Copper Solid Size: 16 AWG;15 AWG;14 AWG
• Conductor - Copper Solid Size Range: 16 AWG-14 AWG
• Conductor - Copper Str Size: 16 AWG;14 AWG
• Conductor - Copper Str Size Range: 16 - 14 AWG
• Dimension - Diameter Max Size inch: 0.18 in
• Dimension - L Length Overall mm: 25 mm
• Dimension - Length Overall inch: 1.00 in
• Dimension - Outside Diameter inch: 0.18 in
• Dimension - Strip Length inch: 1/4 in
• Width: 0.18 in
• Each - Width: 0.18 in
• Feature - Barrel Style: Shrouded
• Insulation Type: Vinyl
• Plated: Y
• Plating Type: Tin
• Product Type: SPLICE
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• Trade Name: VINYLINK™
• Application: For Accommodating A Broad Range Of 600 Volt Cables
• Insulation: Y
• Special Features: Features: The Type SP VINYLINK Is A PVC Insulated Seamless Butt Splice, Type SP VINYLINK Is Designed To Accommodate A Broad Range Of 600 Volt Cables, Manufactured From Seamless Electrolytic Copper Tubing: Provides Maximum Conductivity And Tensile Strength, In A High Quality Design With NO Seams To Split, Funnel Entry: Provides Easy Wire Insertion, Electro-Tin Plated: Provides Durable Long Lasting Resistance To Corrosion, Expanded Insulation Support: Lower Inventory Requirements, Red Wire Range Of 22-16: Lower Inventory Requirements, Vinyl Insulator: Economical Means Of Providing High Dielectric Values And Cable Insulation Support, Insulation Support: Yes, Conductor Type: Commercial/Aircraft Stranded Copper, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: MR8G98, MR8-89-1, MR15 Tool, Color Code: Blue, Wire Strip Length: 1/4 IN
• Sub Brand: VINYLINK
• Temperature Rating: 105° C
• Type: SP
• Conductor Size: 16 - 14 AWG
• Connector Type: Seamless Butt Splice
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B57
• Description - Invoice: SPLICE- 16- 14 AWG-VINYL
• Freight Class Code: 16027000
• Harmonization Code: 8536904000
• Image Actual Or Representative: A
• Lead Time: 10 wk
• MSDS Flag: No
• Order Multiple: 50 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B57BKSF
• Cable Insulation Diameter Maximum: 0.180 in
• UL Listed: Yes
• Color Code: Blue
• Material: Copper
• Voltage - Maximum: 600 V
• Base Unit of Measure: EA
• BOX SIZE: 0.000x0.000x0.000 (in)
• Carton - Gross Weight per Pack: 0.000 lb.
• Carton - Number of Sub Packs: 600
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810712016
• Carton - Total Units: 600 EA
• Case - Number of Sub Packs: 12
• Case - Pack Description: Case (ISO code = 'CA' for HEP)
• Case - SCC-14 Next Lower Level Sub Pack: 30781810712017
• Case - Total Units: 600 EA
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 0.15 lb.
• Package - GTIN - Package: 30781810712017
• Package - Number of Sub Packs: 50
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810712016
• Package - Total Units: 50 EA
• Package Height: 4.25 in
• Package Length: 2.06 in
• Package Quantity: 50 EA
• Package Weight: 0.15 lb.
• Package Width: 2.06 in
• Pallet - GTIN - Package: 70781810712015
• Pallet Height: 44.750 in
• Pallet Length: 48.000 in
• Pallet Weight: 476.280 lb.
• Pallet Width: 40.000 in
• Standard Package Quantity: 50

Certifications

• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Recognized: No
• EU RoHS Indicator: Yes
