Features

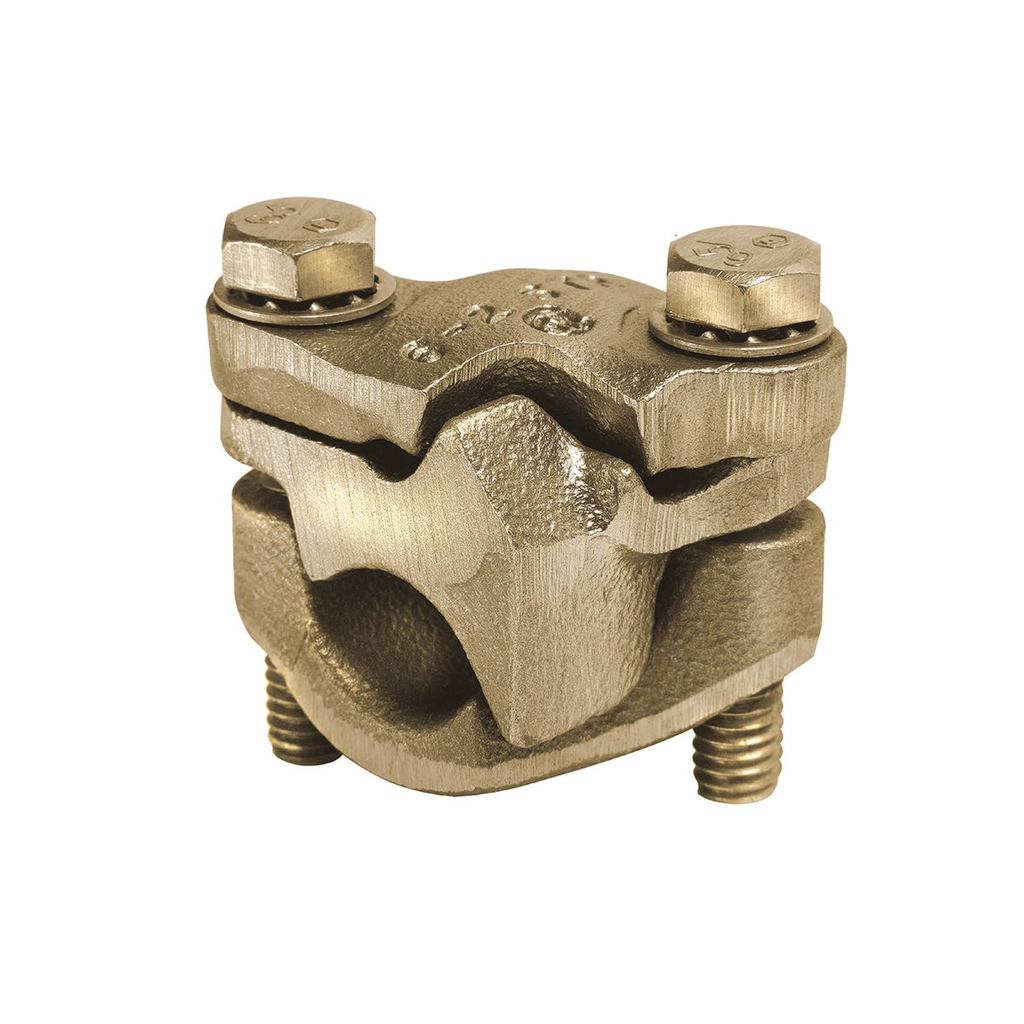

• VERSITAP™ Type QPX Parallel Clamps for copper are capable of Tee, Cross, Parallel, Butt and Tap configurations
• Range-taking, only 10 connectors are required to accommodate conductor sizes from #6 Stranded to 1000 kcmil
• Edges are rounded for easy taping
• The Versitap Type QPX Is Recommended For Tee, Cross, Parallel, Butt And Tap Connections, Range-Taking, Only 10 Connectors Required To Accommodate Conductor Sizes From #6 AWG Stranded To 1000 KCMIL, Edges Are Rounded For Easy Taping, Made Of High Strength, High-Conductivity Copper Alloy And Silicon Bronze DURIUM Hardware, Number Of Bolts: 4, Conductor Type: Run: Commercial Stranded Copper, Tap: Commercial Stranded Copper, Installation Torque: 300 IN-LB, Width: 2-3/16 IN, Length: 2-1/16 IN, Height: 3 IN

Specifications

• Country of Origin: Mexico
• Buy American Compliant: Yes
• Conductor - Copper Str Run: 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
• Conductor - Copper Str Run Range: 250 kcmil-500 kcmil
• Conductor - Copper Str Tap: 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
• Conductor - Copper Str Tap Range: 250 kcmil-500 kcmil
• Conductor - Nominal Diameter: 0.114, 0.128, 0.144, 0.162, 0.571, 0.600, 0.630, 0.681, 0.728, 0.772, 0.813
• Description - Slang: VERSITAP QPX
• Dimension - Height fraction: 3
• Dimension - Height inch: 3
• Dimension - L Length Overall mm: 52 mm
• Dimension - Length Overall inch: 2.06 in
• Dimension - Width fraction: 2-3/16 in
• Dimension - Width inch: 2.19
• Dimension - Width mm: 56 mm
• Width: 2.19 in
• Each - Width: 2.19 in
• Industry Standard(s): UL 486A-486B
• Installation Torque Recommended in-lb: 240 LBS/in
• Plated: N
• Plating Type: Unplated
• Product Type: RUN/TAP
• Rating - Minimum Voltage: 600
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: EX
• Trade Name: VERSITAP™
• Application: For Tee, Cross, Parallel, Butt And Tap Connections
• Special Features: Features: The Versitap Type QPX Is Recommended For Tee, Cross, Parallel, Butt And Tap Connections, Range-Taking, Only 10 Connectors Required To Accommodate Conductor Sizes From #6 AWG Stranded To 1000 KCMIL, Edges Are Rounded For Easy Taping, Made Of High Strength, High-Conductivity Copper Alloy And Silicon Bronze DURIUM Hardware, Number Of Bolts: 4, Conductor Type: Run: Commercial Stranded Copper, Tap: Commercial Stranded Copper, Installation Torque: 300 IN-LB, Width: 2-3/16 IN, Length: 2-1/16 IN, Height: 3 IN
• Standard: UL 486A-486B
• Sub Brand: VERSITAP
• Temperature Rating: 194
• Type: QPX
• Conductor Type: CU C Str-Run;CU C Str-Tap
• Connector Type: Universal Clamp
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B51
• Description - Invoice: VERSITAP,500 Kcmil(Run&Tap)
• Freight Class Code: 16027000
• Harmonization Code: 8535908040
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Replaced Catalog Number: QPX3434
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B51BG9F
• UL Listed: Yes
• Material: Copper
• Material - Hardware: DURIUM™ Silicon Bronze
• Base Unit of Measure: EA
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810344002
• Case - SCC-14 Next Lower Level Sub Pack: 30781810344003
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 10.2 lb.
• Package - GTIN - Package: 30781810344003
• Package - Number of Sub Packs: 6
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810344002
• Package - Total Units: 6 EA
• Package Height: 4.5 in
• Package Length: 6.13 in
• Package Quantity: 6 EA
• Package Weight: 10.2 lb.
• Package Width: 4.56 in
• Standard Package Quantity: 6

Certifications

• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Listed Direct Burial: No
• UL Recognized: No
• EU RoHS Indicator: Yes
