Features

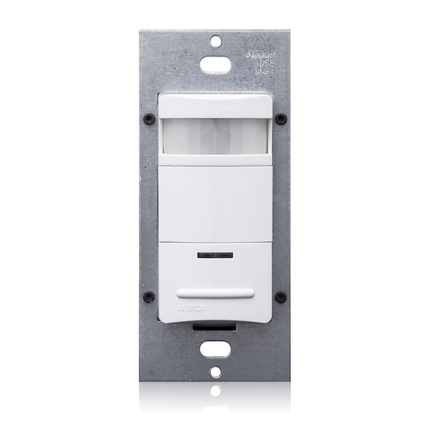

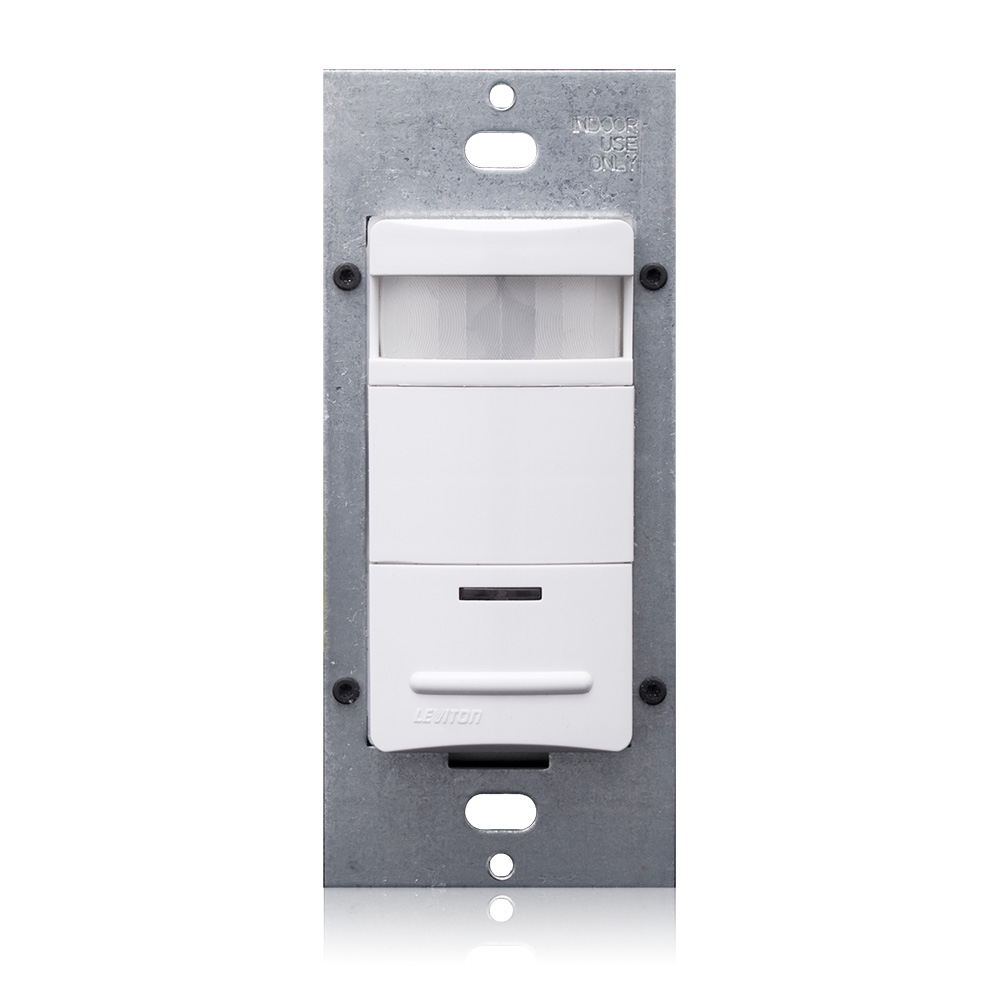

• The passive infrared (PIR) vacancy sensor detects motion from a heat-emitting source within its field-of-view to automatically switch lights OFF, offering the same performance features as the ODS family of occupancy sensors. OSS10 has the ability to reduce (dim) and turn off the “Guide Light” function with a simple dial setting. The LED NightLight consumes less than 1/2 W providing energy savings and guide lighting when room lights are off. OSS10 is perfect for use in hospitality and health care facilities with night light feature to guide to manual-ON. The adjustable time delay settings of 30 seconds to 30 minutes will automatically turn lights OFF. The NightLight Occupancy Sensor Wall Switch can be used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications.
• Fits in standard wallbox and replaces single-pole wall switch; ground and neutral connection required. Gangable with other units
• Low-profile design eliminates obtrusive “scanning device”look. Elegant Decora wallplates complement any interior for sleek aesthetics; uses Decora wallplates and coordinates with Leviton’s popular line of Decora wiring devices
• 180° field-of-view provides approximately 2100 SF of coverage
• Convenient pushbutton provides manual-ON/OFF light switching at any time
• Two dual element PIR sensors used to widen detection range and double the detection points within the FOV
• Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive “minor motion” area where even slight body movements will be detected

Color Variations

• Black
• Ivory
• White

Specifications

• Country of Origin: Mexico

Product Features

• Application: Hotel and Hospital Restrooms, Conference Rooms, Small Offices, Storage Areas, Classrooms, Lounges, Bathrooms
• Color: White
• Grade: Commercial
• Mounting: Wall Switch
• Product Line: OSS10
• Sensor Technology: Passive Infrared (PIR)
• Sensor Type: Vacancy

Performance Specifications

• Coverage (Sq.Ft.): 1200
• Pattern: 180°

Electrical Specifications

• Frequency: 50/60Hz
• Load Rating: Fluorescent: 1200VA @ 120V, 2700VA @ 277V Incandescent: 800W @ 120V, Motor – 1/8 HP @ 120V
• Neutral Wire Connection: Required
• Power Consumption: 120V Nightlight OFF - 190mW, 120V Nightlight ON max - 350mW, 277V Nightlight OFF - 250mW, 277V Nightlight ON max - 410mW
• Voltage: 120/230/277 VAC
• Wiring: Line - Black, Load - Blue, Ground - Green, Neutral - White

Standards and Certifications

• Listings: UL/cUL Certified, NOM, can be used to comply with Title 24, Part 6 requirements for occupancy sensing and NYC L48, FCC Compliant
• Title 24 Compliant: Yes
• USMCA Compliant: Yes

Mechanical Specifications

• Mounting Type: Wall Switch
• Size: Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83" (47mm), Install Depth 1.35" (34.4mm), Install Height 2.60" (66.2mm)
• Switch Type: Single-Pole, LED Nightlight

Environmental Specifications

• Operating Temperature: 0° to 50°C (32° to 122°F)
• Relative Humidity: 20% to 90% non-condensing

Type

• Product Type: Vacancy Sensor

Warranty

• Warranty: 5-Year Limited
