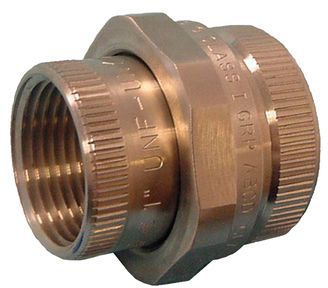

UNY100S, Explosionproof Conduit Union – Explosionproof Conduit Fitting

The UNY100S Explosionproof Conduit Union by O-Z Gedney is designed for joining rigid conduit and intermediate metal conduit (IMC) to enclosures, facilitating conduit modifications and enabling enclosure removal without disturbing conduit runs. This product is ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers operating in hazardous locations requiring explosionproof and dust-ignitionproof conduit fittings compliant with NEC/CEC standards.

Specifications

• Application: For Rigid Conduit and IMC
• Material: Zinc Plated Steel
• Connection: Tapered Female NPT x Male NPT
• Length: 2-1/2 inches
• Diameter: 2-1/16 inches
• Product Weight: 0.65 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part Number: UNY-100S
• UL Listed: E-34997 per UL Standard 886
• CSA Certified: C22.2 No. 30, Certification #065181
• Compliance: NEC Articles 500-503 and 505, Military Spec Mil-F28675
• Classifications: Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III

Features

• Explosionproof and dust-ignitionproof design for hazardous locations
• Facilitates modifications and enclosure removal without turning or removing conduit
• Smooth, rounded integral bushing protects conductor insulation
• Accurately tapped, tapered threads ensure tight, rigid joints and maintain ground continuity
• Non-expansion union with concentric ring interlocked design for smaller diameter and use in tight spaces
• Steel construction with zinc electroplate finish for corrosion resistance
• Concretetight design for secure sealing in concrete applications
