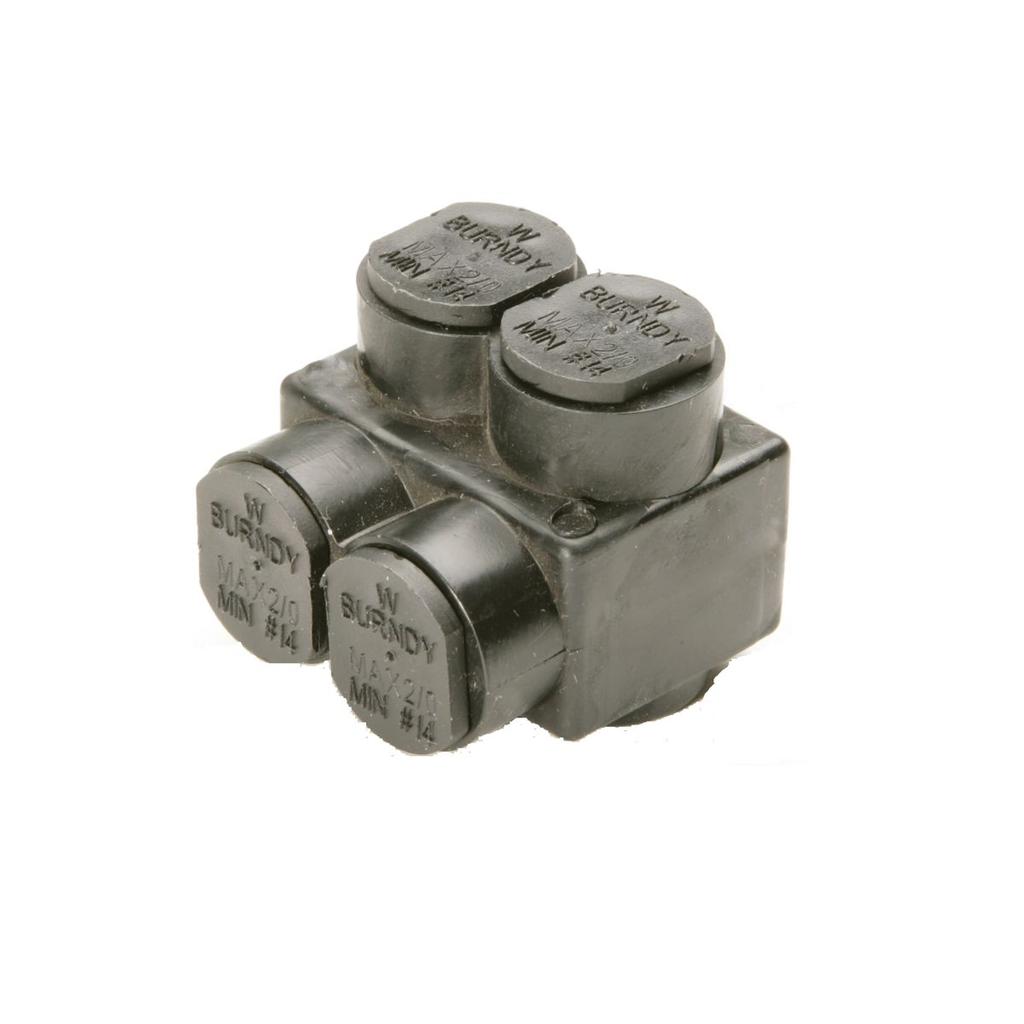

Features

• UV Rated Covering over AL6061-T6 aluminum body saves time, lowering installation costs and eliminates taping
• Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area
• Range-taking capability reduces the number of connectors necessary to carry in inventory
• UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Torque: 275 IN-LB, Wire Entry: Double, Conductor Size (run - Range): 10 AWG - 250 KCMIL, Hex Size (key): 5/16 IN, Wire Strip Length: 1 IN, Type Of Insulation: UV Rated Plastisol, Number Of Ports: 2

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• Conductor - AL Str Size: 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - AL Str Size Range: 10 AWG - 250 kcmil
• Conductor - Copper Str Size: 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Str Size Range: 10 AWG - 250 kcmil
• Description - Slang: Black Insulation
• Dimension - Height fraction: 2.125 in
• Dimension - Height inch: 2.13 in
• Dimension - L Length Overall mm: 52 mm
• Dimension - Length Overall inch: 2.03 in
• Dimension - Screw Size inch: 5/8
• Dimension - Width fraction: 2-16/25 in
• Dimension - Width inch: 2.64 in
• Dimension - Width mm: 67 mm
• Width: 2.64 in
• Each - Width: 2.64 in
• Hex Key: 5/16
• Installation Torque Recommended in-lb: 275 in-lb
• Insulation Type: Plastisol
• Physical Attribute - Number of Screws: 2
• Physical Attribute - Screw Type: Allen
• Plated: N
• Plating Type: Unplated
• Product Type: RUN/TAP
• Standards - RoHS Compliance Status: CM
• Trade Name: UNITAP™
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Conductor Size: 10 AWG-250 KCMIL
• Special Features: Features: UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Torque: 275 IN-LB, Wire Entry: Double, Conductor Size (run - Range): 10 AWG - 250 KCMIL, Hex Size (key): 5/16 IN, Wire Strip Length: 1 IN, Type Of Insulation: UV Rated Plastisol, Number Of Ports: 2
• Sub Brand: UNITAP
• Temperature Rating: 194° F
• Type: BIBD, Multi-Port
• Conductor Type: AL C Str-Size;CU C Str-Size
• Connector Type: Multi Tap
• Insulation: Y
• Number Of Ports: 2
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B51
• Description - Invoice: BLKTAP,DBL,2 PRTS 250-10
• Freight Class Code: 16027000
• Harmonization Code: 8536904000
• Image Actual Or Representative: A
• Lead Time: 10 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B51BGWF
• UL Listed: Yes
• Material: Aluminum
• Material - Hardware: Aluminum
• Voltage - Maximum: 600 V
• Base Unit of Measure: EA
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810287156
• Case - SCC-14 Next Lower Level Sub Pack: 30781810287157
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 6.48 lb.
• Package - GTIN - Package: 30781810287157
• Package - Number of Sub Packs: 24
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810287156
• Package - Total Units: 24 EA
• Package Height: 11.5 in
• Package Length: 11.25 in
• Package Quantity: 24 EA
• Package Weight: 6.48 lb.
• Package Width: 8.5 in
• Standard Package Quantity: 24

Certifications

• CSA Approved: No
• cULus: No
• ETL: No
• UL Listed Direct Burial: No
• UL Recognized: No
• EU RoHS Indicator: Yes
