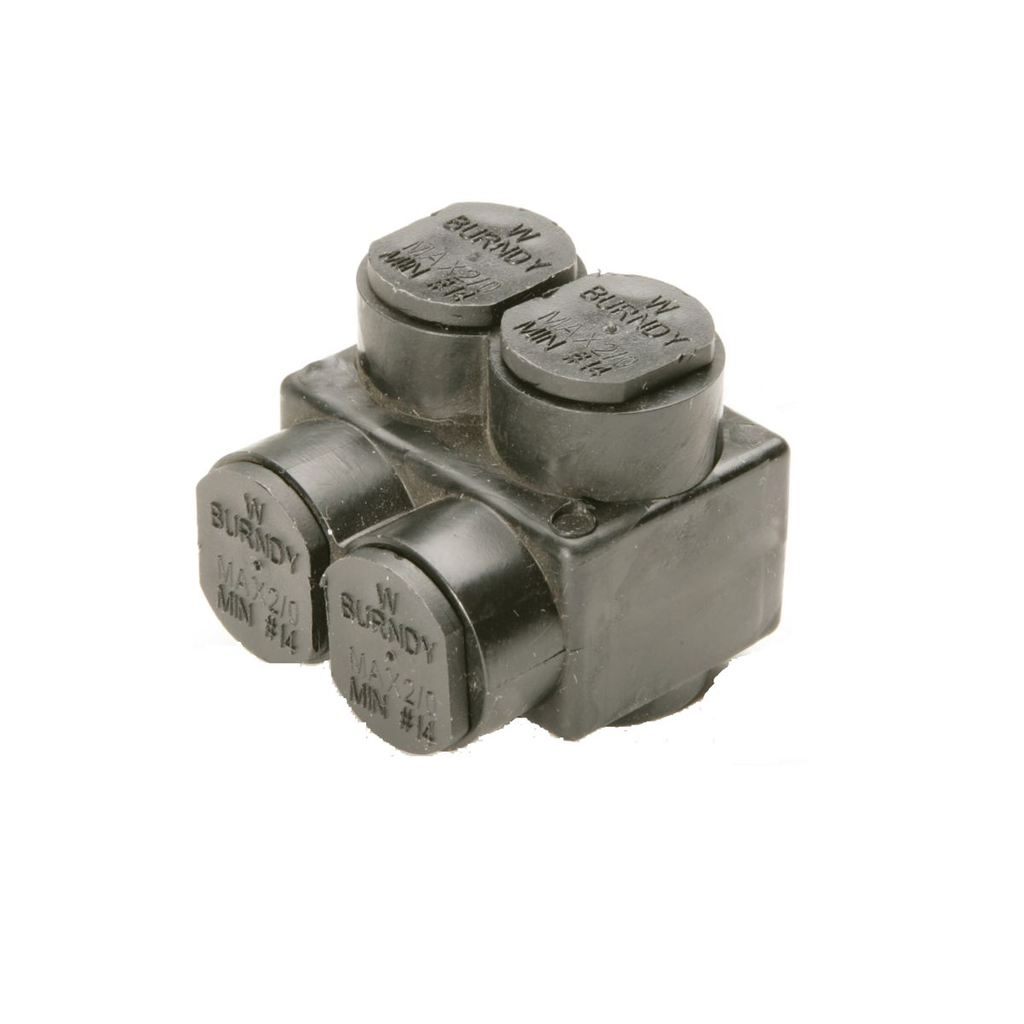

Features

• UV Rated Covering over AL6061-T6 aluminum body saves time, lowering installation costs and eliminates taping
• Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area
• Range-taking capability reduces the number of connectors necessary to carry in inventory
• UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Wire Entry: Double, Conductor Size (run - Range): 14 - 2/0 AWG, Hex Size (key): 3/16 IN, Number Of Ports: 2, Torque: 120 IN-LB, Type Of Insulation: UV Rated Plastisol

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• Conductor - AL Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
• Conductor - AL Str Size Range: 14 AWG - 2/0 AWG
• Conductor - Copper Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
• Conductor - Copper Str Size Range: 14 AWG - 2/0 AWG
• Description - Slang: Black Insulation
• Dimension - Height fraction: 1.375 in
• Dimension - Height inch: 1.38 in
• Dimension - L Length Overall mm: 39 mm
• Dimension - Length Overall inch: 1.52 in
• Dimension - Screw Size inch: 7/16
• Dimension - Width fraction: 1-14/25 in
• Dimension - Width inch: 1.56 in
• Dimension - Width mm: 40 mm
• Width: 1.56 in
• Each - Width: 1.56 in
• Hex Key: 3/16
• Installation Torque Recommended in-lb: 120 in-lb
• Insulation Type: Plastisol
• Physical Attribute - Number of Screws: 2
• Physical Attribute - Screw Type: Allen
• Plated: N
• Plating Type: Unplated
• Product Type: RUN/TAP
• Standards - RoHS Compliance Status: CM
• Trade Name: UNITAP™
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Conductor Size: 14-2/0 AWG
• Special Features: Features: UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Wire Entry: Double, Conductor Size (run - Range): 14 - 2/0 AWG, Hex Size (key): 3/16 IN, Number Of Ports: 2, Torque: 120 IN-LB, Type Of Insulation: UV Rated Plastisol
• Sub Brand: UNITAP
• Temperature Rating: 194° F
• Type: BIBD, Multi-Port
• Conductor Type: AL C Str-Size;CU C Str-Size
• Connector Type: Multi Tap
• Insulation: Y
• Number Of Ports: 2
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B51
• Description - Invoice: BLKTAP,DBL,2 PRTS 2/0-14
• Freight Class Code: 16027000
• Harmonization Code: 8536904000
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B51BGWF
• UL Listed: Yes
• Material: Aluminum
• Material - Hardware: Aluminum
• Voltage - Maximum: 600 V
• Base Unit of Measure: EA
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810294857
• Case - SCC-14 Next Lower Level Sub Pack: 30781810294858
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 10 lb.
• Package - GTIN - Package: 30781810294858
• Package - Number of Sub Packs: 100
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810294857
• Package - Total Units: 100 EA
• Package Height: 11.5 in
• Package Length: 11.25 in
• Package Quantity: 100 EA
• Package Weight: 10 lb.
• Package Width: 8.5 in
• Standard Package Quantity: 100

Certifications

• CSA Approved: No
• cULus: No
• ETL: No
• UL Listed Direct Burial: No
• UL Recognized: No
• EU RoHS Indicator: Yes
