Features

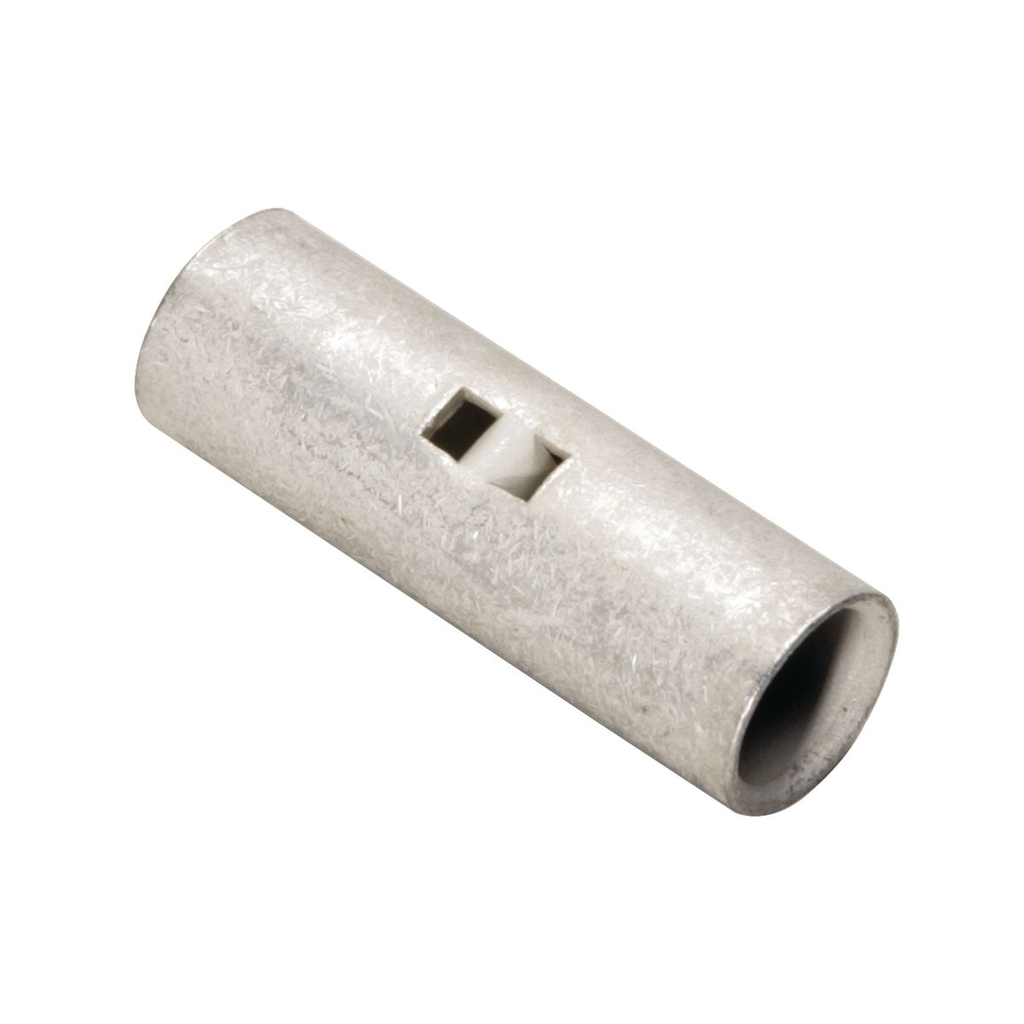

• HYLINK Type YSV Seamless Splice Connector Is Used To Splice Stranded And Solid Copper Conductors In Virtually All Heavy Duty Industrial And General Purpose Applications, Manufactured From Seamless Tubing: A High Quality Design With No Seams To Split, Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Resistance To Corrosion, Positive Center Wire Stops: Provides Proper Depth Of Wire Insertion, Marked With Wire Size: Provides Easy Wire Size Identification, The HYLINK Splice Connectors Have Inspection Holes: Provides Easy Visual Inspection ForProper Wire Insertion, Package: Box, Installation Tool: HYTOOL: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: Y8MRB-1, MR20, MR8G98, MR8-9Q Tool, Insulation Support: No, Conductor Type: Solid Conductor, Wire Strip Length: 1/4 IN

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• ChannelSightWidgetId: 705
• Conductor - Copper Solid Size: 20;18;17;16;15;14;13;12
• Conductor - Copper Str Aircraft Size: AN 20;AN 18;AN 16;AN 14
• Conductor - Copper Str Size: 22;20;18;16;14
• Dimension - L Length Overall mm: 16 mm
• Dimension - Length Overall inch: 0.64 in
• Dimension - Outside Diameter inch: 0.16 in
• Dimension - Strip Length inch: 1/4 in
• Width: 0.16 in
• Each - Width: 0.16 in
• Feature - Barrel Style: Chamfered
• Plated: Y
• Plating Type: Tin
• Product Type: SPLICE
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• Trade Name: HYLINK™
• Application: For All Heavy Duty Industrial And General Purpose Applications
• Special Features: Features: HYLINK Type YSV Seamless Splice Connector Is Used To Splice Stranded And Solid Copper Conductors In Virtually All Heavy Duty Industrial And General Purpose Applications, Manufactured From Seamless Tubing: A High Quality Design With No Seams To Split, Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Resistance To Corrosion, Positive Center Wire Stops: Provides Proper Depth Of Wire Insertion, Marked With Wire Size: Provides Easy Wire Size Identification, The HYLINK Splice Connectors Have Inspection Holes: Provides Easy Visual Inspection ForProper Wire Insertion, Package: Box, Installation Tool: HYTOOL: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: Y8MRB-1, MR20, MR8G98, MR8-9Q Tool, Insulation Support: No, Conductor Type: Solid Conductor, Wire Strip Length: 1/4 IN
• Sub Brand: HYLINK
• Type: Splice
• Conductor Size: 16 - 14 AWG
• Conductor Type: CU C Str-Size;CU C Solid-Size;CU C Str Aircraft-Size
• Connector Type: Seamless Butt Splice
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B57
• Description - Invoice: SPLICE- 20-14 AWG-UNIN, GRAY
• Freight Class Code: 16027000
• Harmonization Code: 8535908020
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 100 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B57BKFF
• UL Listed: Yes
• Material: Copper
• Voltage - Maximum: 35000 V
• Base Unit of Measure: EA
• BOX SIZE: 0.000x0.000x0.000 (in)
• Carton - Gross Weight per Pack: 0.000 lb.
• Carton - Number of Sub Packs: 1200
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810543702
• Carton - Total Units: 1200 EA
• Case - Number of Sub Packs: 12
• Case - Pack Description: Case (ISO code = 'CA' for HEP)
• Case - SCC-14 Next Lower Level Sub Pack: 30781810543703
• Case - Total Units: 1200 EA
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 0.3 lb.
• Package - GTIN - Package: 30781810543703
• Package - Number of Sub Packs: 100
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810543702
• Package - Total Units: 100 EA
• Package Height: 4.25 in
• Package Length: 2.06 in
• Package Quantity: 100 EA
• Package Weight: 0.3 lb.
• Package Width: 2.06 in
• Pallet - GTIN - Package: 70781810543701
• Pallet Height: 44.750 in
• Pallet Length: 48.000 in
• Pallet Weight: 912.600 lb.
• Pallet Width: 40.000 in
• Standard Package Quantity: 100

Certifications

• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Recognized: No
• EU RoHS Indicator: Yes
