Features

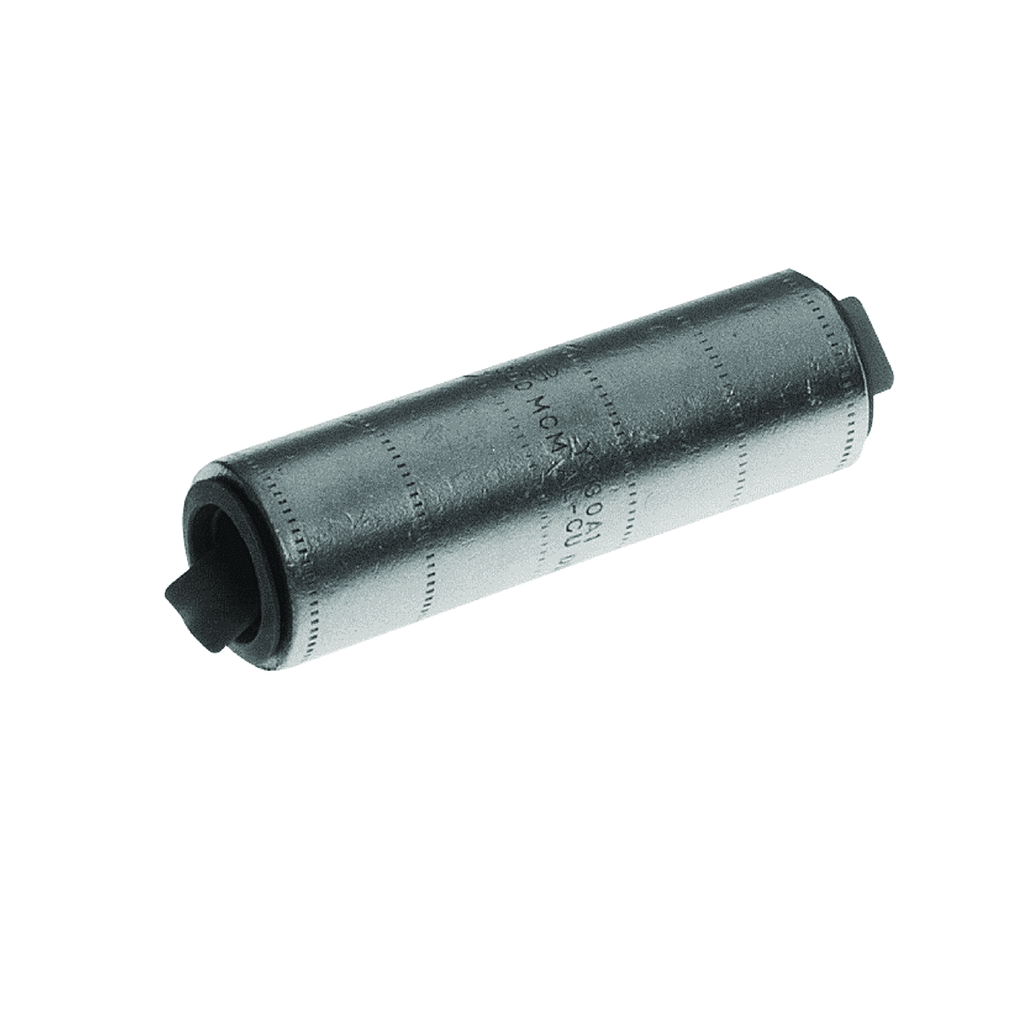

Features: Manufactured From High-Conductivity Wrought Aluminum With Heavy Duty Wall Thickness: Provides High-Conductivity/Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Entry, Solid Center Stop And Prefilled With PENETROX Oxide Inhibiting Compound: Provides Stop For Proper Conductor Insertion And An Aid In Forcing The PENETROX Between The Individual Wire Strands, Color-Coded End Caps: Provides Easy Wire Size And Die Code Identification Plus Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage, Connector Is Clearly Marked With Wire Size, Die Index And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation, Proper Compression Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, UL Listed for Aluminum only, Dieless Tools (number Of Crimps): Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4), Color Code: Pink, Die Index: 300 Element A, Conductor Type: Stranded Aluminum Or Copper, Wire Strip Length: 2-5/8 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y75 Tool, U34ART Die, (4), Y46 Tool, U34ART Die With PUADP-1 Adapter, (4)

Specifications

General

• Application: For Use On All Combinations Of Aluminum To Aluminum, Aluminum To Copper, And Copper To Copper Conductor Combinations
• Color Code: Pink
• Connector Type: Splice
• Die Index: 300
• Feature - Barrel Style: Chamfered
• Feature - Barrel Type: Long
• Item Type: 3A
• Material: Aluminum
• Plated: Y
• Plating Type: Tin - Electro Plated
• Sub Brand: HYLINK
• Temperature Rating: 194
• Trade Name: HYLINK™
• Type: YS-A, Standard Barrel
• UPC: 781810757550
• UPC 12 Digit: 7818107575500

Dimensions

• Dimension - B Length fraction: 2-3/8 in
• Dimension - B Length inch: 2.38 in
• Dimension - L Length Overall mm: 128 mm
• Dimension - Length Overall inch: 5.02 in
• Dimension - Outside Diameter inch: 1.32 in
• Dimension - Strip Length inch: 2-5/8 in
• Length: 5.02 in
• Outside Diameter: 1.32 in

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - AL Str Size: 500 kcmil
• Conductor - AL Str Size Range: 500 kcmil
• Conductor - Copper Str Compact Size: 500
• Conductor - Copper Str Size: 500 kcmil
• Conductor - Copper Str Size Range: 500 kcmil

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL468A-468B
• Standards - Industry Standards Met: UL468A-468B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
