Features

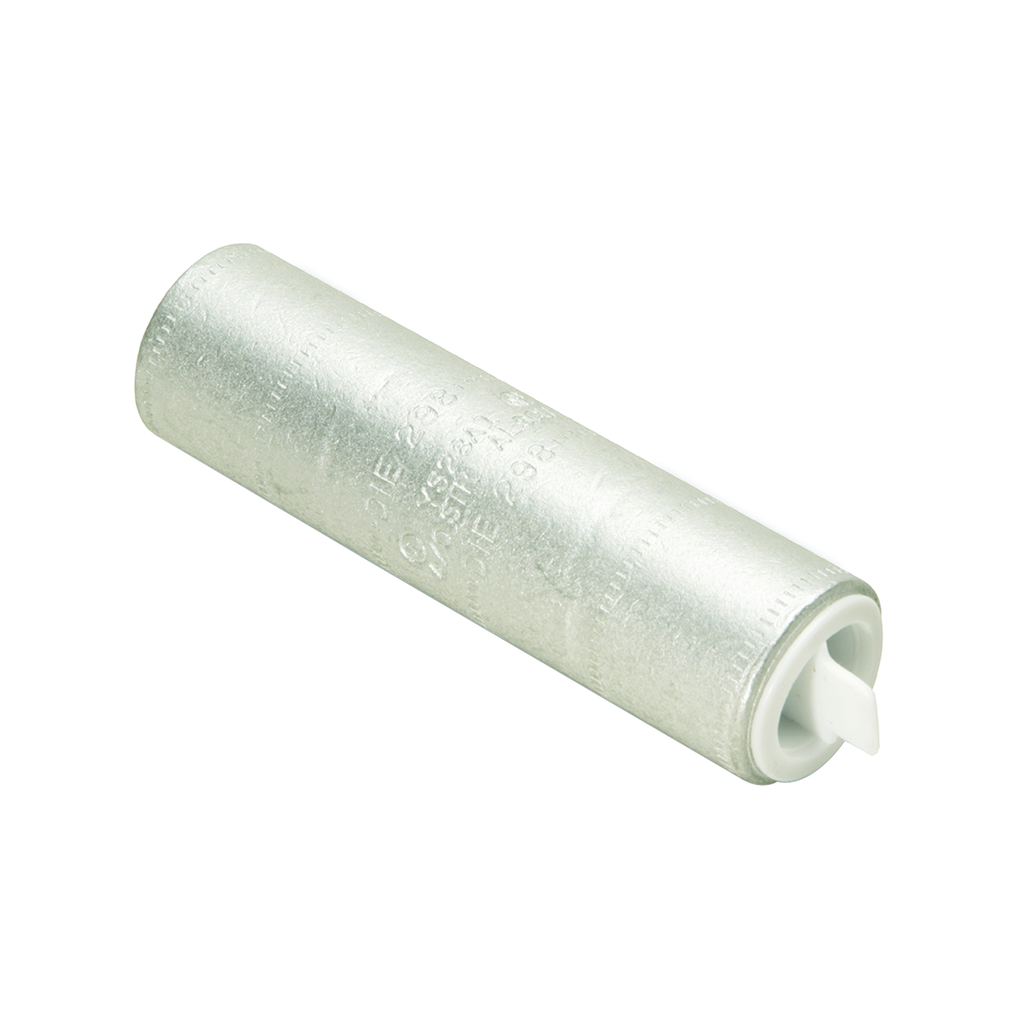

Features: Manufactured From High-Conductivity Wrought Aluminum With Heavy Duty Wall Thickness: Provides High-Conductivity/Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Entry, Solid Center Stop And Prefilled With PENETROX Oxide Inhibiting Compound: Provides Stop For Proper Conductor Insertion And An Aid In Forcing ThePENETROX Between The Individual Wire Strands, Color-Coded End Caps: Provides Easy Wire Size And Die Code Identification Plus Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage, Connector Is Clearly Marked With Wire Size, Die Index And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation, Proper Compression Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, Designed To Accommodate Conductors From 12 Stranded Through 1,000 KCMIL In Standard And Heavy Duty Applications, Die Index: 324 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750, Y46, Y60BHU Tool, U29ART Die, (2), Color Code: Red, Dieless Tools (number Of Crimps): Mechanical HYTOOL: MY29-3 Tool, (2), Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Wire Strip Length: 1-5/8 IN, Features: Manufactured From High-Conductivity Wrought Aluminum With Heavy Duty Wall Thickness: Provides High-Conductivity/Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Entry, Solid Center Stop And Prefilled With PENETROX Oxide Inhibiting Compound: Provides Stop For Proper Conductor Insertion And An Aid In Forcing ThePENETROX Between The Individual Wire Strands, Color-Coded End Caps: Provides Easy Wire Size And Die Code Identification Plus Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage, Connector Is Clearly Marked With Wire Size, Die Index And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation, Proper Compression Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, Designed To Accommodate Conductors From 12 Stranded Through 1,000 KCMIL In Standard And Heavy Duty Applications, Die Index: 298 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750, Y46, Y60BHU Tool, U28ART Die, (2), Color Code: White, Dieless Tools (number Of Crimps): Mechanical HYTOOL: MY29-3, MRC840AL Tool, (2), Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Wire Strip Length: 1-5/8 IN

Specifications

General

• Application: For Use On All Combinations Of Aluminum To Aluminum, Aluminum To Copper, And Copper To Copper Conductor Combinations
• Color Code: Red White
• Connector Type: Splice
• Die Index: 324 298
• Feature - Barrel Style: Chamfered
• Feature - Barrel Type: Long
• Item Type: 3A
• Material: Aluminum
• Plated: Y
• Plating Type: Tin - Electro Plated
• Sub Brand: HYLINK
• Temperature Rating: 194
• Trade Name: HYLINK™
• Type: YS-A, Standard Barrel
• UPC: 781810757352
• UPC 12 Digit: 7818107573522 7818107573077

Dimensions

• Dimension - B Length fraction: 1-7/16 in 1-3/8 in
• Dimension - B Length inch: 1.46 in 1.40 in
• Dimension - L Length Overall mm: 81 mm 78 mm
• Dimension - Length Overall inch: 3.18 in 3.06 in
• Dimension - Outside Diameter inch: 0.92 in 0.85 in
• Dimension - Strip Length inch: 1-5/8 in
• Length: 3.06 in
• Outside Diameter: 0.92 in 0.85 in

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - AL Str Size: 250 kcmil 4/0 AWG
• Conductor - AL Str Size Range: 250 kcmil
• Conductor - Copper Str Compact Size: 250
• Conductor - Copper Str Size: 250 kcmil 4/0 AWG
• Conductor - Copper Str Size Range: 250 kcmil

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL468A-468B
• Standards - Industry Standards Met: UL468A-468B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
