Features

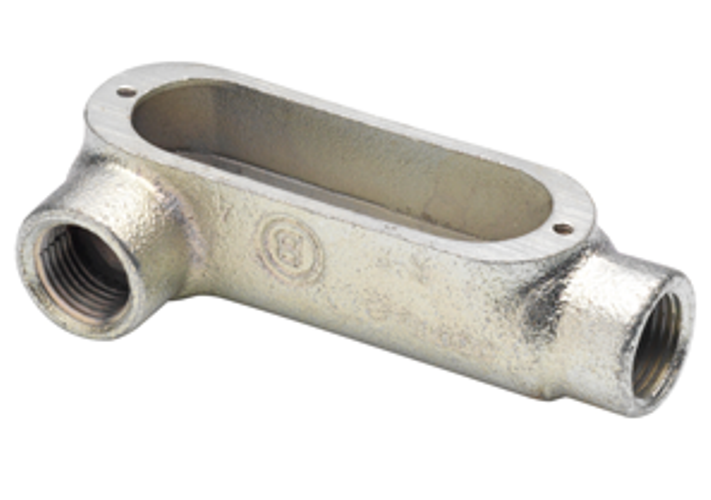

• Type LR - Type LR conduit bodies are used for a 90 degree cable pull, with the cable exiting through the right side of the body
• Heavy-Duty - Malleable iron offers excellent impact abrasion and corrosion resistance – making these conduit bodies suitable for heavy-duty industrial applications
• Threaded Hubs - NPT threads allow rigid and intermediate metal conduit to be screwed directly into the conduit body
• Easy Access - Conduit bodies provide easy access to the interior of conduit systems for pulling, inspection and routine maintenance
• Better Bodies - Bridgeport's high-quality production standards make our conduit bodies the better choice for a fast, hassle-free installation

Certifications and Standards

• UL-514A

Specifications

• Country of Origin: India
• Length: 10.5 in
• Width: 4.125 in
• Height: 3.3125 in
• Depth: 3.125 in
• Weight: 666.6 lbs
• BPT Trade Size: 2"
• Field Application: Threaded bodies for rigid conduit or IMC allows access for inspection, pulling and maintenance.
• FINISH: Zinc electro-plate
• MATERIAL: Malleable Iron
• NEMA Rating: FB-1
• UL File #: E11077
• WARRANTY: 1 Year
