Features

• Greater Flexibility - The combination of set screws and NPT threads allows for rigid and intermediate metal conduit as well as electrical metallic tubing applications

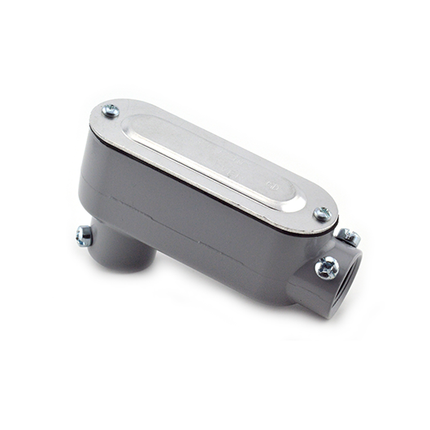

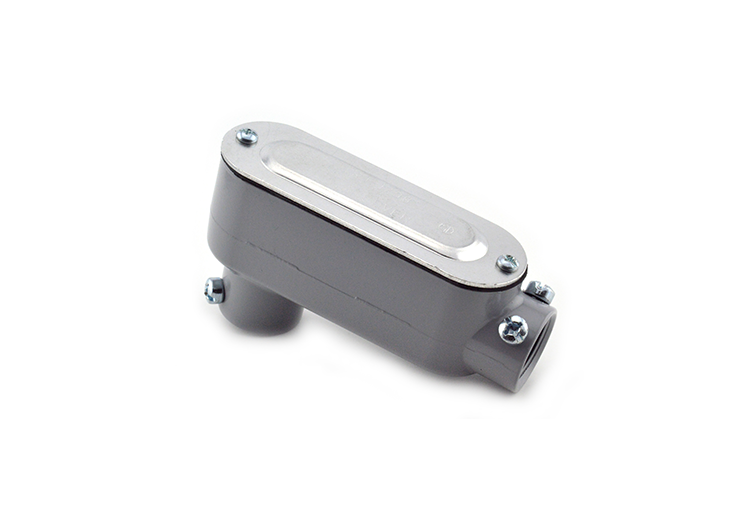

• Type LB - Type LB conduit bodies are used for a 90 degree change of cable direction through the back of the body opposite the cover
• Gasket and Cover - A neoprene gasket and aluminum cover protects your system from dust and water. This conduit body is also listed raintight when used with rigid conduit
• Easy Access - Conduit bodies provide easy access to the interior of conduit systems for pulling, inspection and routine maintenance
• Aluminum Body - Copper-free aluminum conduit bodies reduce the weight of your wiring system while also providing a reliable, cost-effective solution

Certifications and Standards

• UL-514A

Specifications

• Country of Origin: India
• Length: 4.97 in
• Width: 2.58 in
• Depth: 1.53 in
• Weight: 52.8 lbs
• BPT Trade Size: 3/4"
• COLOR: Gray
• Field Application: Type LB Combination EMT/Rigid Conduit Body with Cover and Gasket
• FINISH: Enamel paint
• MATERIAL: Aluminum
• UL File #: E11077
