Features

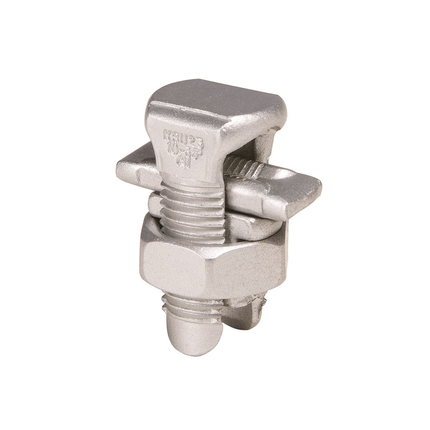

• Tin-Plated, High Strength Copper Alloy SERVIT With Spacer, Spacer Separates Dissimilar Conductors And Provides Long Contact Length That Prevents High Pressure Point Contacts Between Run And Tap Conductors, Use Of PENETROX Joint Compound Recommended With Aluminum And ACSR, Conductor Type: Run: ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Tap: ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Steel (Nominal Diameter), Installation Torque: 385 IN-LB, Width: 0.79 IN, Cross Flats: 14 IN, Length: 1.93 IN

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• Conductor - AAAC 5005 Run: 123.3 (7) kcmil
• Conductor - AAAC 5005 Run Range: 123.3 (7) kcmil
• Conductor - AAAC 5005 Tap: 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
• Conductor - AAAC 5005 Tap Range: 30.58 (7) kcmil-123.3 (7) kcmil
• Conductor - AAAC 6201 Run: 123.3 (7) kcmil
• Conductor - AAAC 6201 Run Range: 123.3 (7) kcmil
• Conductor - AAAC 6201 Tap: 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
• Conductor - AAAC 6201 Tap Range: 30.58 (7) kcmil-123.3 (7) kcmil
• Conductor - ACSR Str Run: 1 (6/1) Robin AWG;1/0 (6/1) Raven AWG
• Conductor - ACSR Str Run Range: 1 AWG - 1/0 AWG
• Conductor - ACSR Str Tap: 6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG;3 (6/1) Swallow AWG;2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG;1 (6/1) Robin AWG;1/0 (6/1) Raven AWG
• Conductor - ACSR Str Tap Range: 6 AWG - 1/0 AWG
• Conductor - AL Str Run: 2 AWG;1 AWG;1/0 AWG;2/0 AWG
• Conductor - AL Str Run Range: 2 AWG - 2/0 AWG
• Conductor - AL Str Tap: 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG
• Conductor - AL Str Tap Range: 8 AWG - 2/0 AWG
• Conductor - Copper Solid Run: 22
• Conductor - Copper Solid Run Range: 22
• Conductor - Copper Str Run: 2 AWG;1 AWG;1/0 ;2/0 AWG
• Conductor - Copper Str Run Range: 2 AWG - 2/0 AWG
• Conductor - Copper Str Tap: 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
• Conductor - Copper Str Tap Range: 8 AWG - 2/0 AWG
• Conductor - Galvanized Steel Str Size: 7/16 (7) in
• Conductor - Galvanized Steel Str Size Range: 7/16 (7) in
• Dimension - Cross Flats inch: 1.04 in
• Dimension - L Length Overall mm: 49 mm
• Dimension - Length Overall inch: 1.95
• Dimension - Width inch: 0.79 in
• Dimension - Width mm: 20 mm
• Width: 1.19 in
• Each - Width: 1.19 in
• Installation Torque Recommended in-lb: 385
• Plated: Y
• Plating Type: Tin Plated
• Product Type: Mechanical
• Standards - RoHS Compliance Status: CM
• Trade Name: SERVIT®
• Application: For All Combinations Of Copper, Aluminum, ACSR, AAAC, 5005, And Steel
• Special Features: Features: Tin-Plated, High Strength Copper Alloy SERVIT With Spacer, Spacer Separates Dissimilar Conductors And Provides Long Contact Length That Prevents High Pressure Point Contacts Between Run And Tap Conductors, Use Of PENETROX Joint Compound Recommended With Aluminum And ACSR, Conductor Type: Run: ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Tap: ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Steel (Nominal Diameter), Installation Torque: 385 IN-LB, Width: 0.79 IN, Cross Flats: 14 IN, Length: 1.93 IN
• Sub Brand: UNIVERSAL SERVIT
• Type: KSU, Universal
• Conductor Type: CU C Solid-Run;CU C Str-Run;AL C Str-Run;AAAC C 5005-Run;AAAC C 6201-Run;ACSR C Str-Run;CU C Solid-Tap;CU C Str-Tap;AL C Str-Tap;AAAC C 5005-Tap;AAAC C 6201-Tap;ACSR C Str-Tap;GAL Steel C Str-Size
• Connector Type: Split Bolt
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B30
• Description - Invoice: SERVIT UNIV 1/0-2/0
• Freight Class Code: 16027000
• Harmonization Code: 8535908040
• Image Actual Or Representative: A
• Lead Time: 10 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B30B3EF
• UL Listed: Yes
• Material: Copper
• Base Unit of Measure: EA
• BOX SIZE: 5.125x6.438x4.875 (in)
• Carton - Gross Weight per Pack: 7.025 lb.
• Carton - Number of Sub Packs: 25
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810036600
• Carton - Total Units: 25
• Case - SCC-14 Next Lower Level Sub Pack: 30781810036601
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 7.025 lb.
• Package - GTIN - Package: 30781810036601
• Package - Number of Sub Packs: 25
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810036600
• Package - Total Units: 25 EA
• Package Height: 4.50 in
• Package Length: 6.13 in
• Package Quantity: 25 EA
• Package Weight: 7.025 lb.
• Package Width: 4.56 in
• Pallet - GTIN - Package: 70781810036609
• Pallet Height: 46.750 in
• Pallet Length: 48.000 in
• Pallet Weight: 1674.800 lb.
• Pallet Width: 40.000 in
• Standard Package Quantity: 25

Certifications

• CSA Approved: No
• EU RoHS Indicator: Yes
