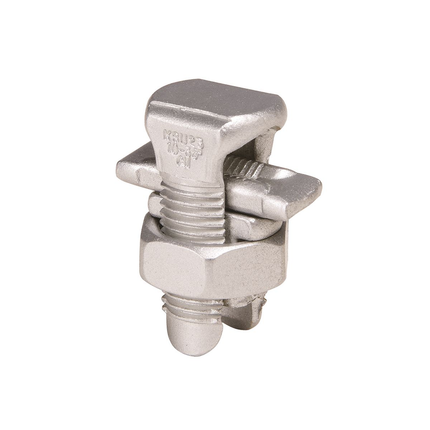

Tin plated copper alloy SERVIT with spacer to separate dissimilar conductors - Split Bolt Connector

This tin-plated copper alloy SERVIT split bolt connector is designed for use by electrical distributors and switchgear suppliers to connect and separate dissimilar conductors in wire and cable installations. It provides a reliable connection for various conductor materials including copper, aluminum, ACSR, AAAC, 5005, and steel, ensuring long contact length and preventing high pressure point contacts between run and tap conductors.

Specifications

• Material: Copper
• Plating Type: Tin Plated
• Connection Type: Split Bolt
• Length Overall: 1.77 in
• Width: 0.70 in
• Installation Torque (Recommended): 385 in-lb
• UL Listed: Yes
• RoHS Compliance: Yes
• Country of Origin: United States
• Product Weight: 0.1930 lb
• Manufacturer Part #: KSU25

Features

• Tin-plated, high strength copper alloy with spacer
• Spacer separates dissimilar conductors and provides long contact length
• Prevents high pressure point contacts between run and tap conductors
• Compatible with all combinations of copper, aluminum, ACSR, AAAC, 5005, and steel conductors
• Made in USA
