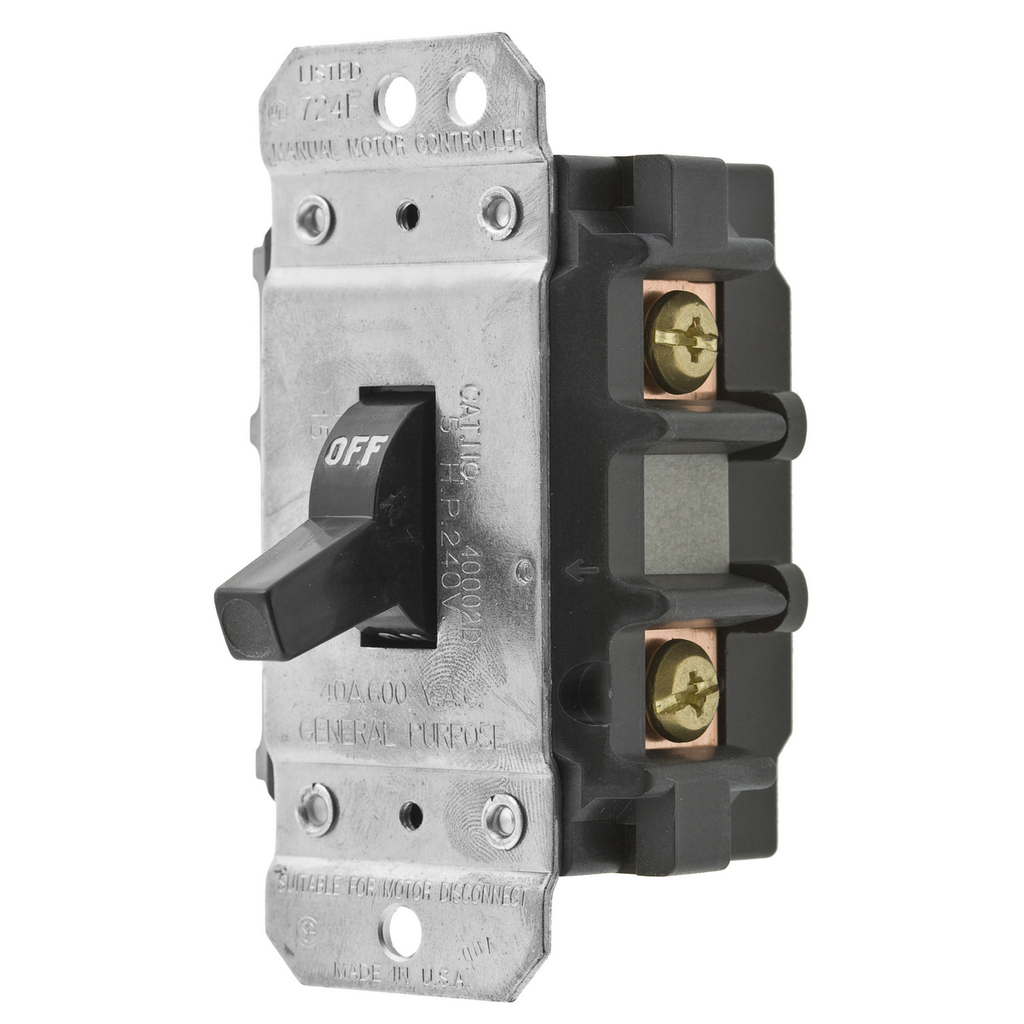

Features

• 30A
• double pole
• single throw
• AC manual motor controller
• black nylon handle
• side and back wired.
• Standard Product

Specifications

• Country of Origin: United States
• Current / Amperage Rating: 30 A
• Width: 2.418 in
• Each - Width: 2.418 in
• Horsepower - Maximum: 15
• Current Rating: 30
• Number of Poles: 2 Pole
• Special Features: Standard Product
• Type: Back & Side Wire
• Voltage Rating: 600 VAC
• Voltage Rating Description: 600 VAC
• Amperage Rating: 30 A
• Connectivity: Back and Side Wired
• Display Size: Standard Sized Product
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Load Capacity: Inductive
• Number Of Poles: 2 Pole
• Operating Cycles: 10,000 Cycles Minimum
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Phase: Single Phase
• Wattage: 18000 W
• Weight: 0.45 lb.
• Class Code: A16
• Description - Invoice: 30A 600V 2P DISC SW
• Freight Class Code: 06168002
• Harmonization Code: 8536509901
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: HBL7832
• Sub Class Code: A16A240
• Material - Mounting Hardware: Screw Mounting
• Material: Stainless Steel
• Series: Standard Toggle
• Base Unit of Measure: EA
• BOX SIZE: 5.048x12.488x4.048 (in)
• Carton - Gross Weight per Pack: 5.000 lb.
• Carton - Number of Sub Packs: 30
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585202815
• Carton - Total Units: 10 EA
• Case - Total Units: 30 EA
• Case Weight: 13.500 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each

Certifications

• EU RoHS Indicator: Yes
